What Axisys did
- Architectural floor, roof and elevation drawings
- Building sections

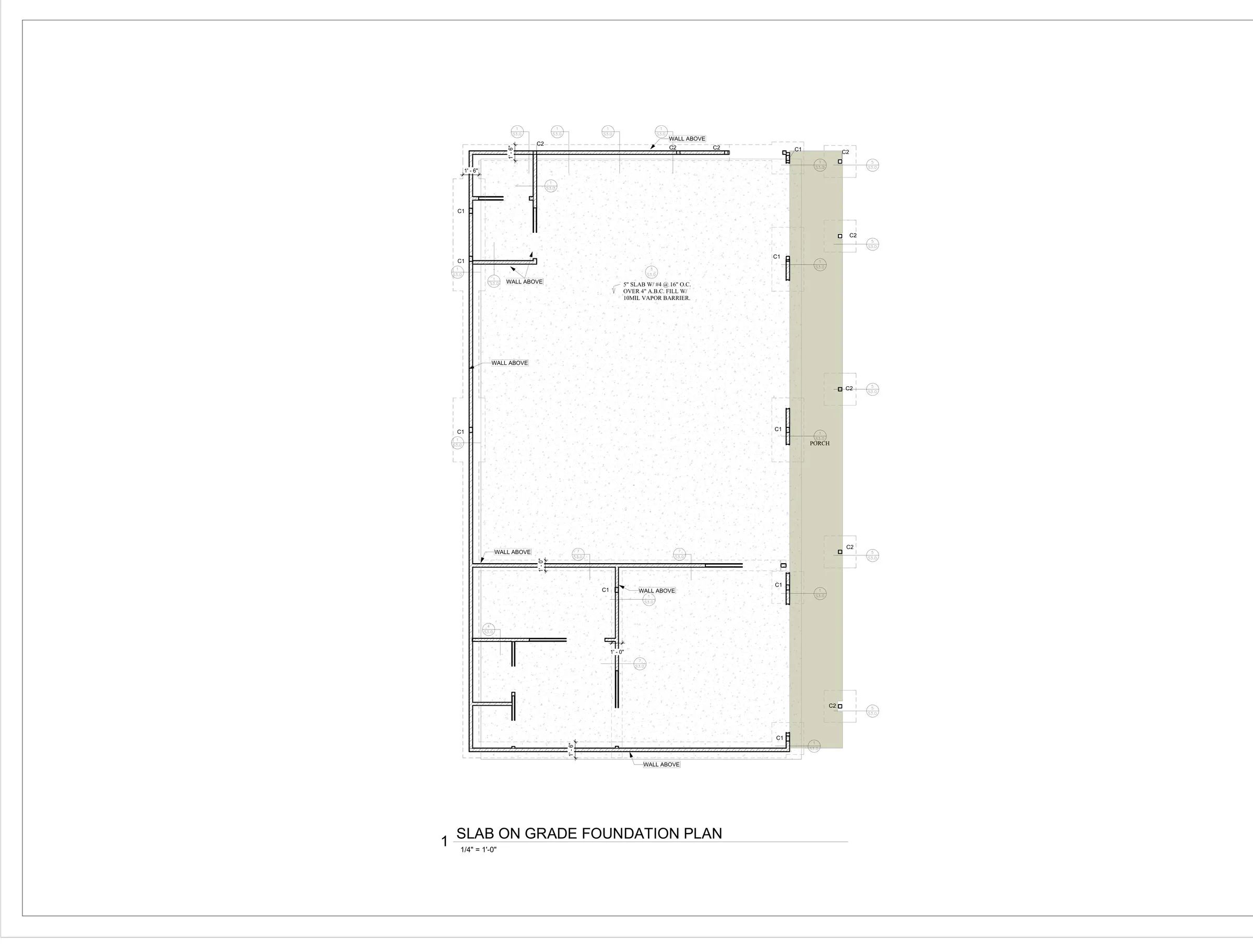

- Foundation and slab-on-grade design

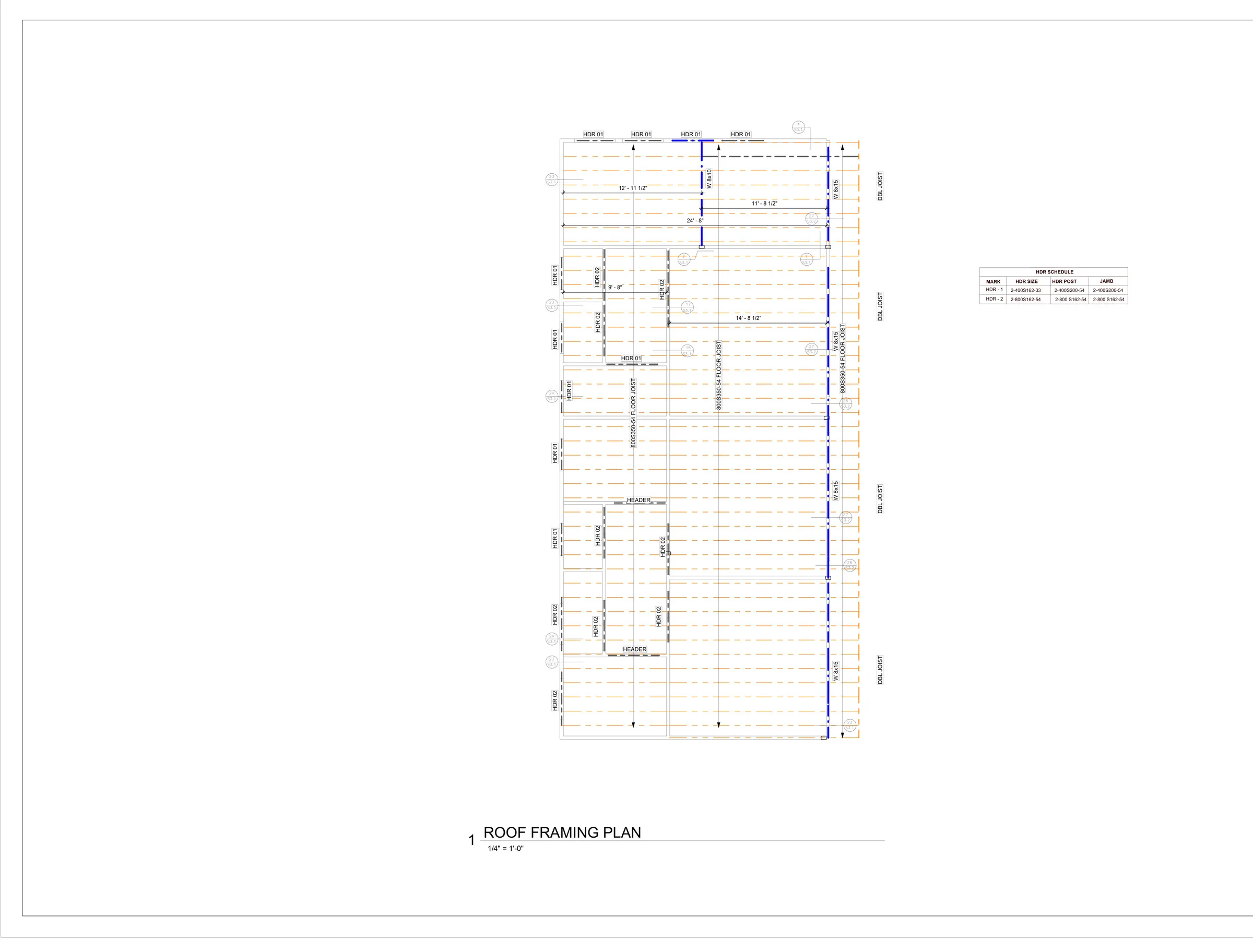

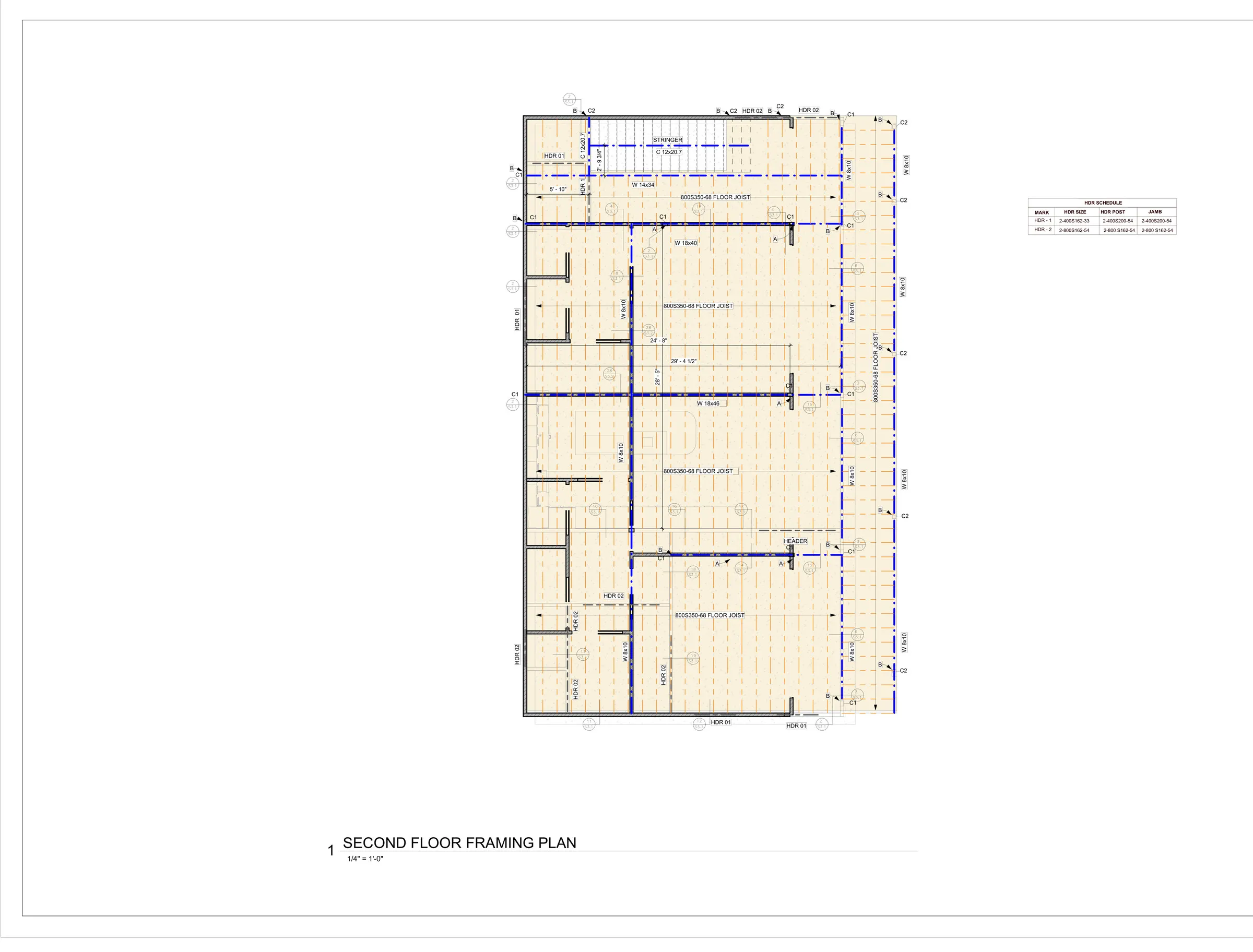

- Floor and roof framing plans with schedules

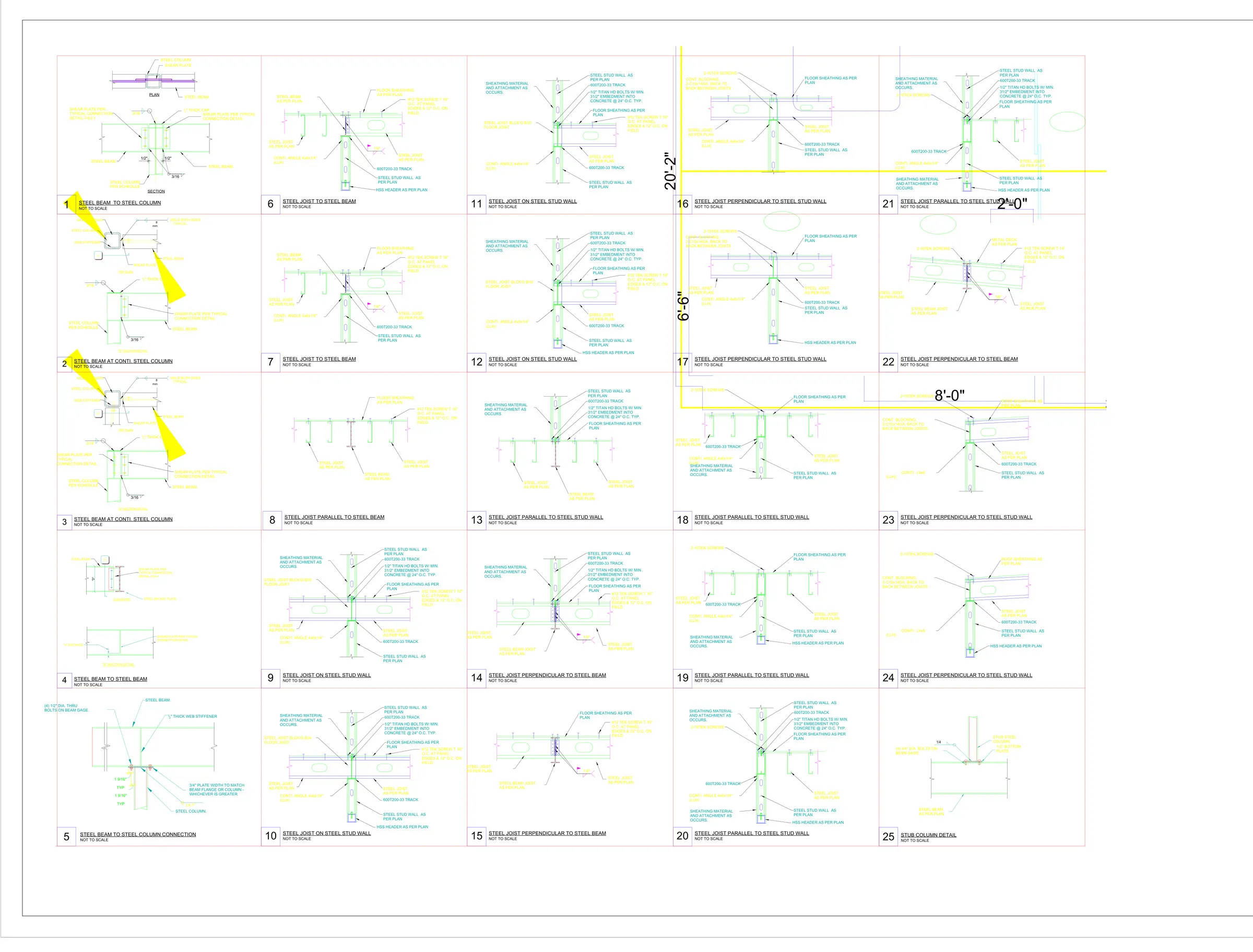

- Typical framing connection details
Residential · Fallbrook, California, USA
Modern Two-Storey Residence
A contemporary two-storey home with wrap-around balcony — architectural plans, elevations and sections plus complete structural foundation and framing design.
- Architecture
- Structure
- Sector
- Residential
- Location
- Fallbrook, California, USA
- Year
- 2025
- Status
- Permit set
- Deliverables shown
- 13 drawings & views
Case study
Architectural and structural drawings for a contemporary two-storey home with a continuous balcony.
A two-storey residence with full-height glazing and a continuous balcony. Axisys produced the architectural drawing set and a coordinated structural package covering foundations, floor and roof framing, and connection details.
01 · 3D views & renderings
1 sheet · click to zoom

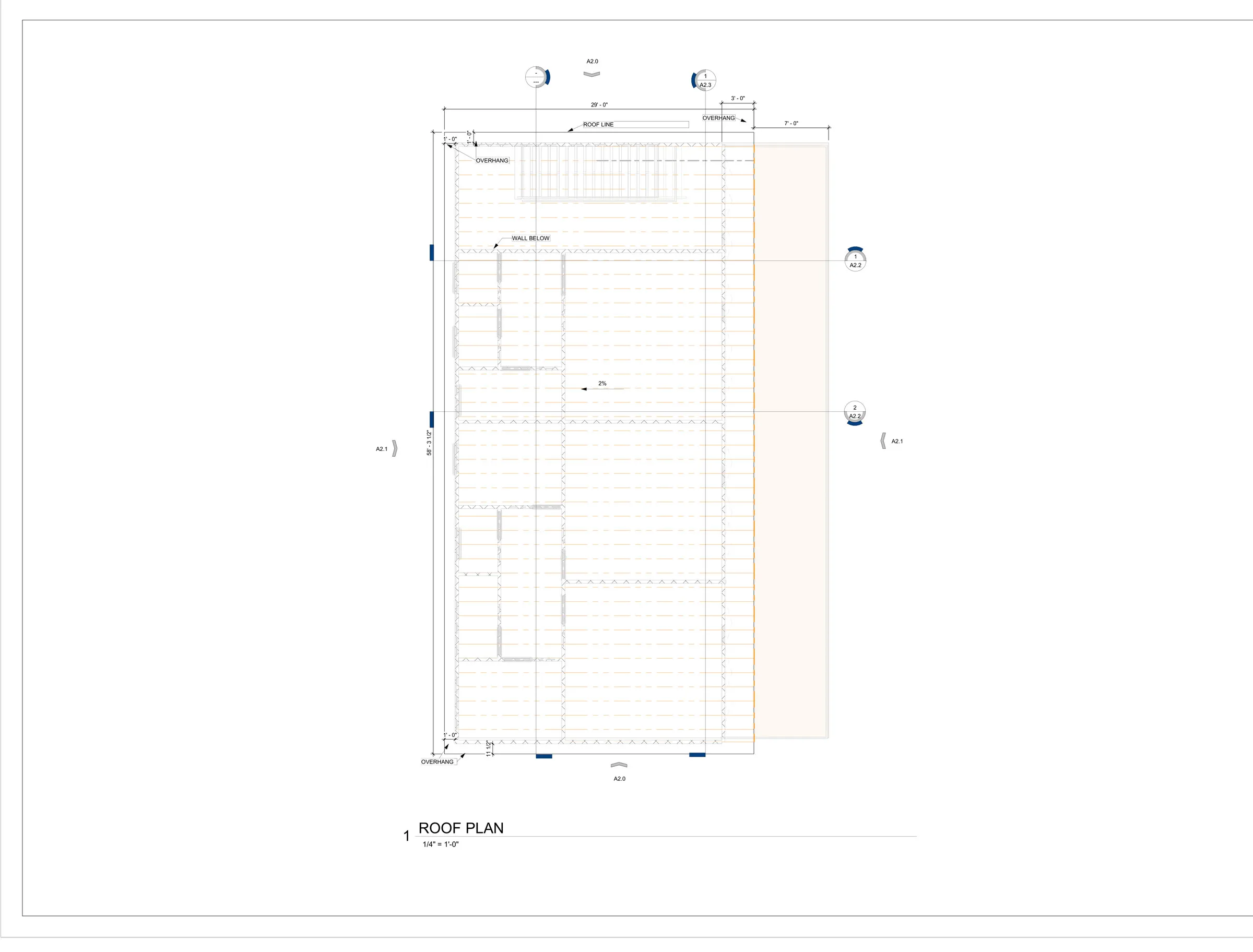

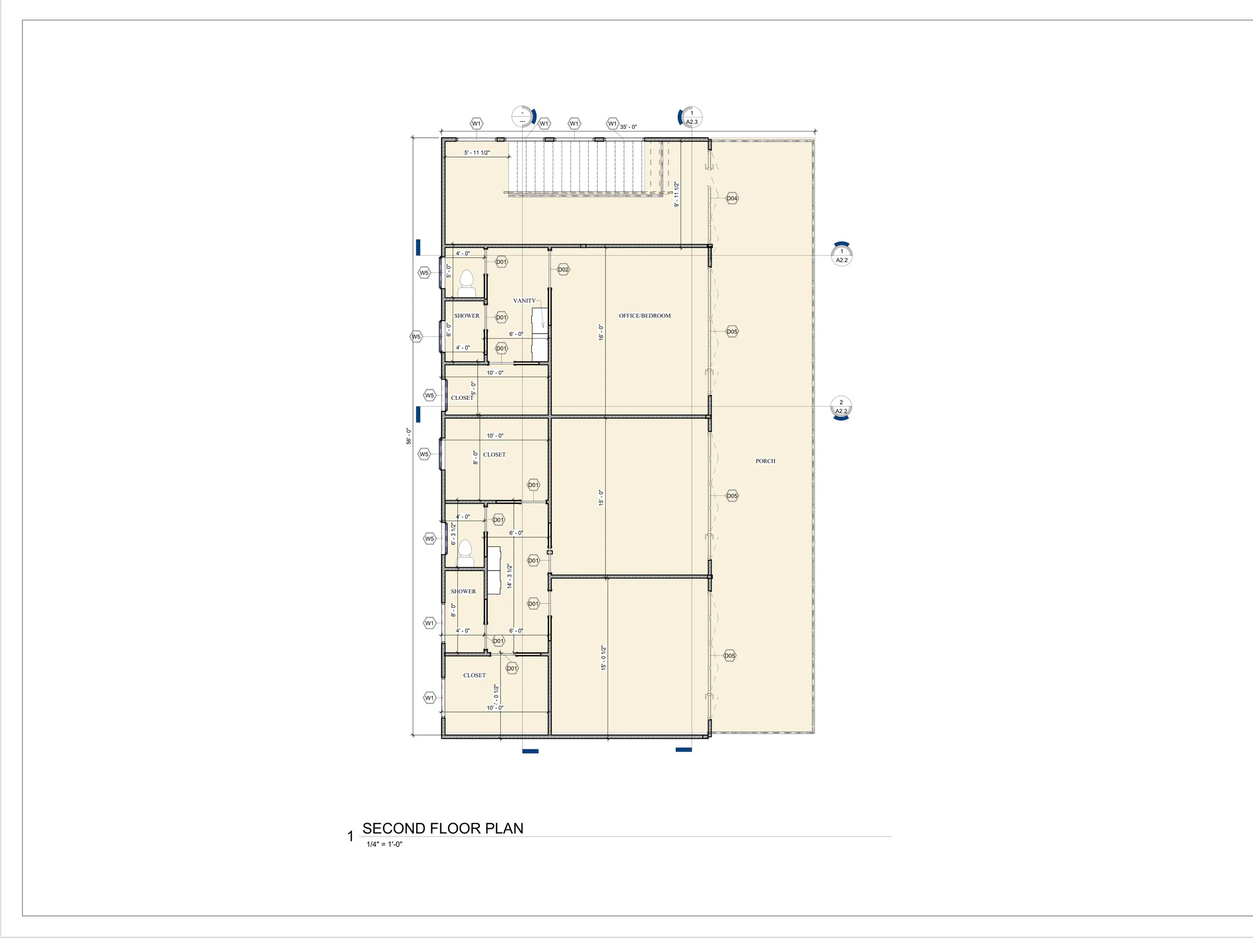

02 · Plans
3 sheets · click to zoom

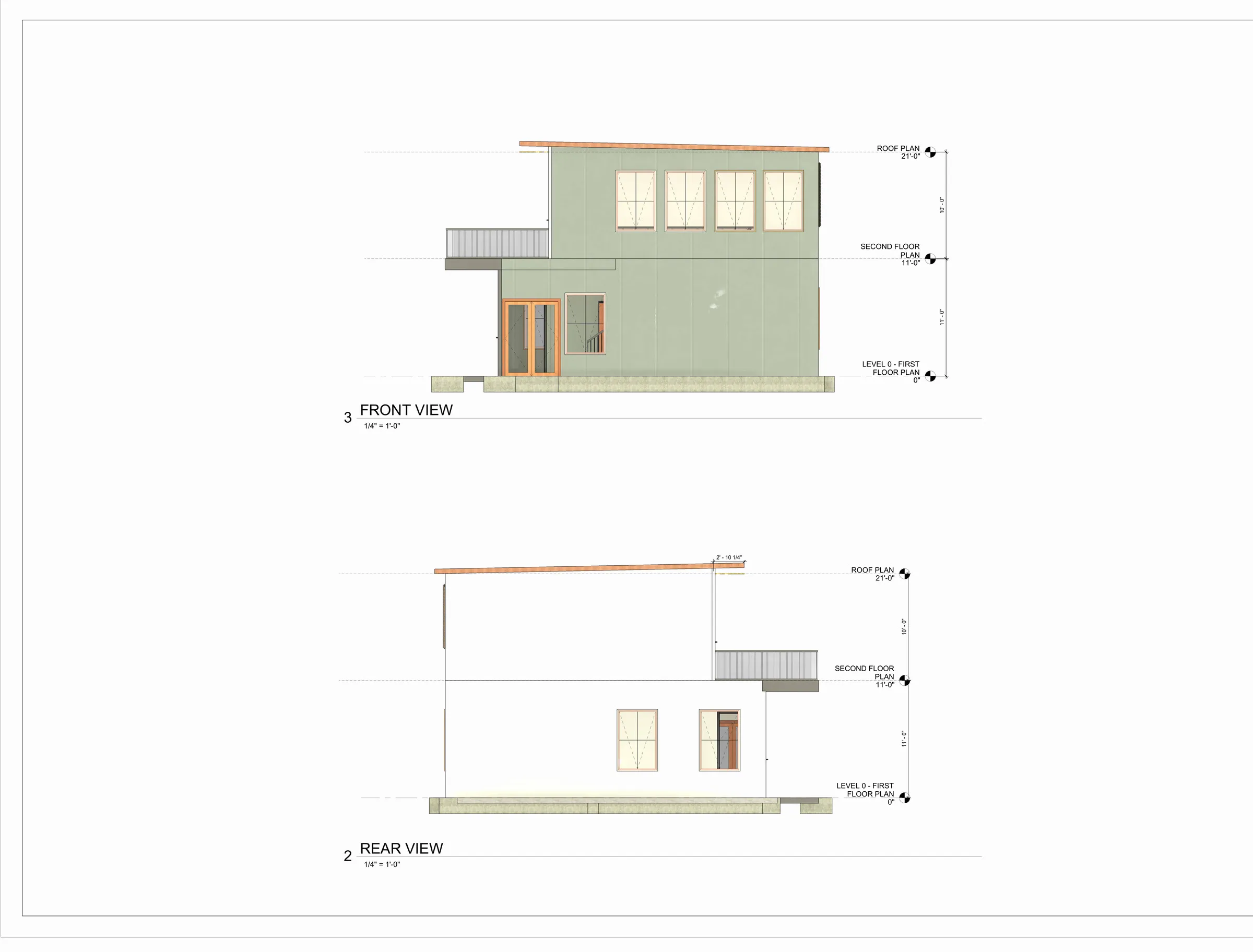

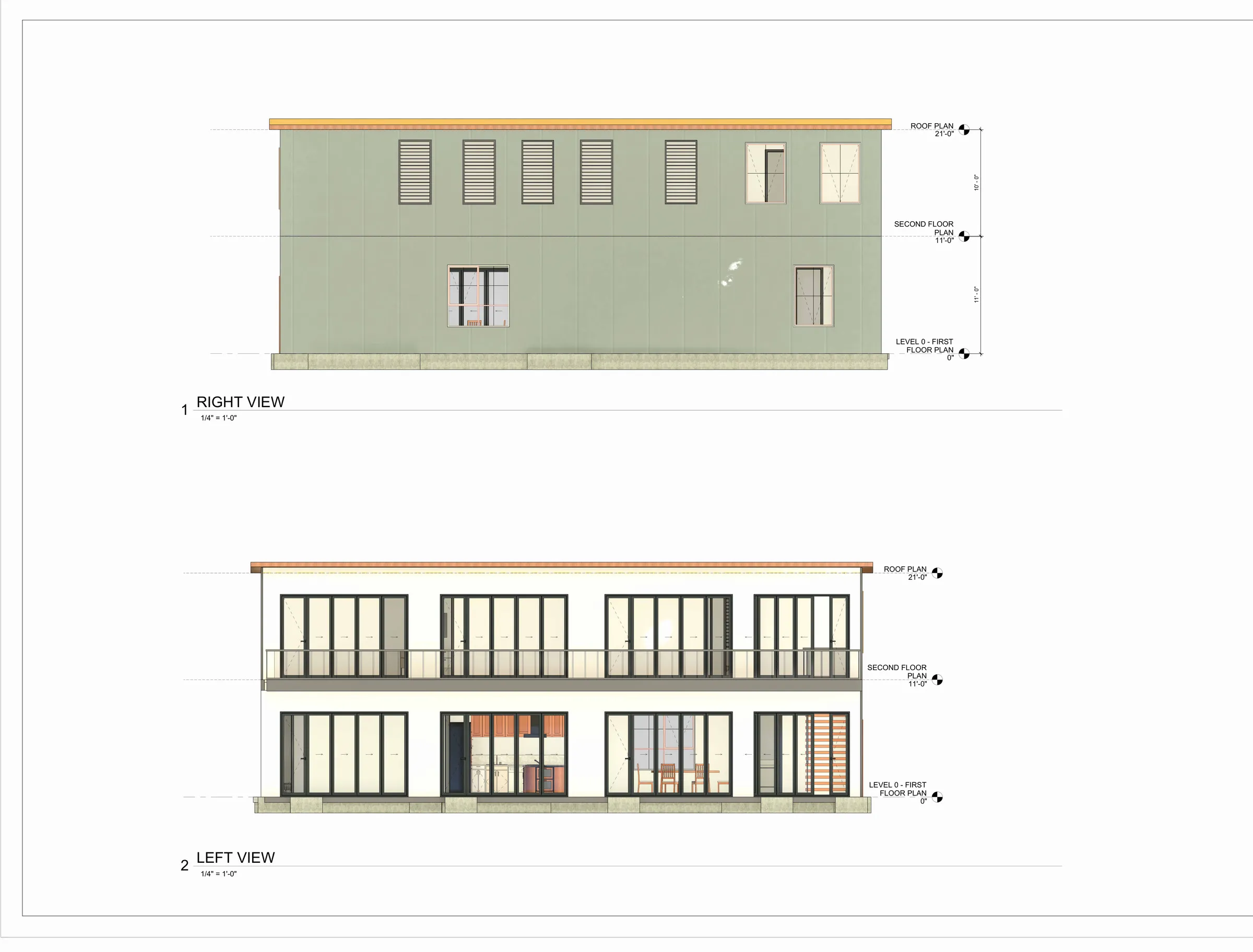

03 · Elevations
2 sheets · click to zoom

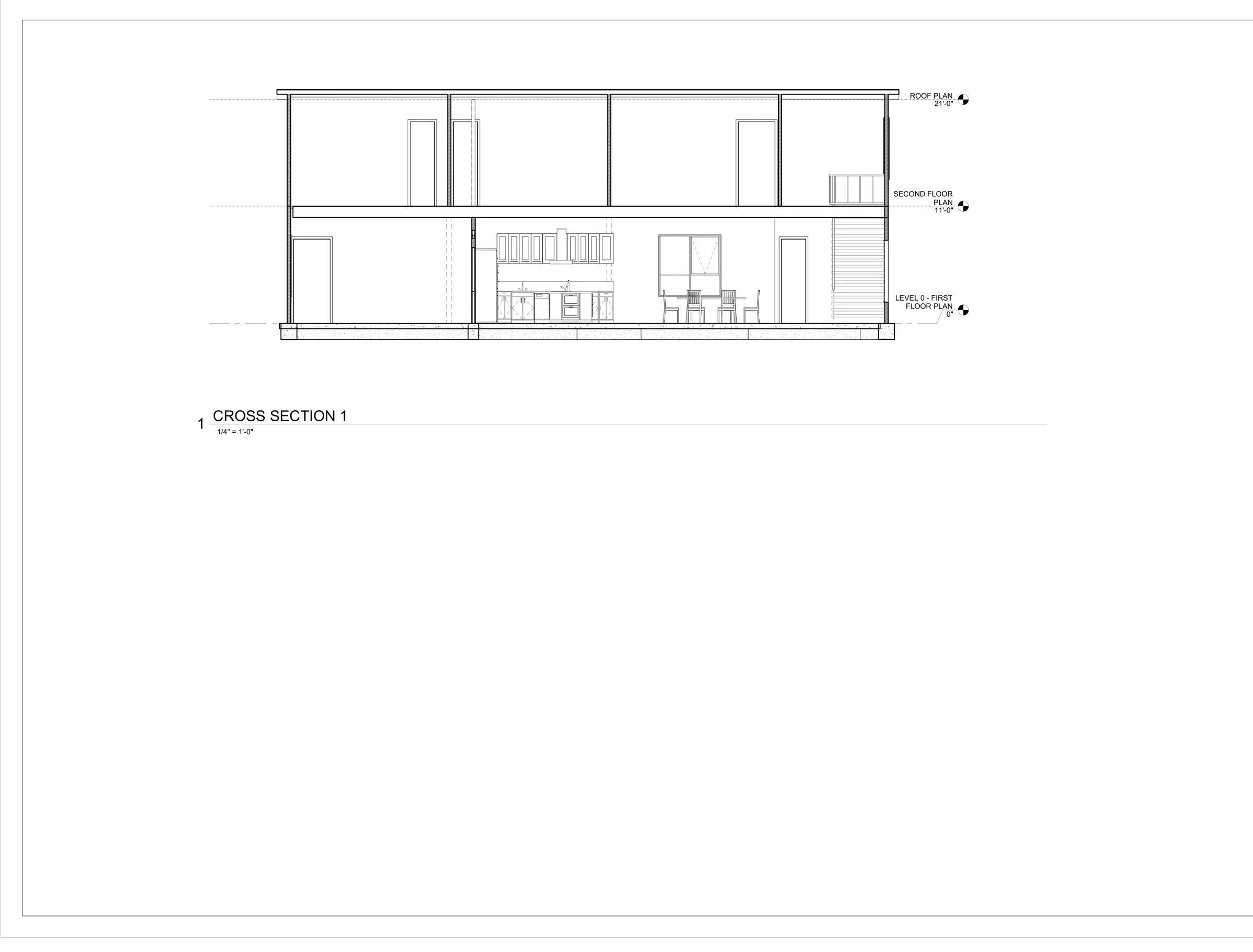

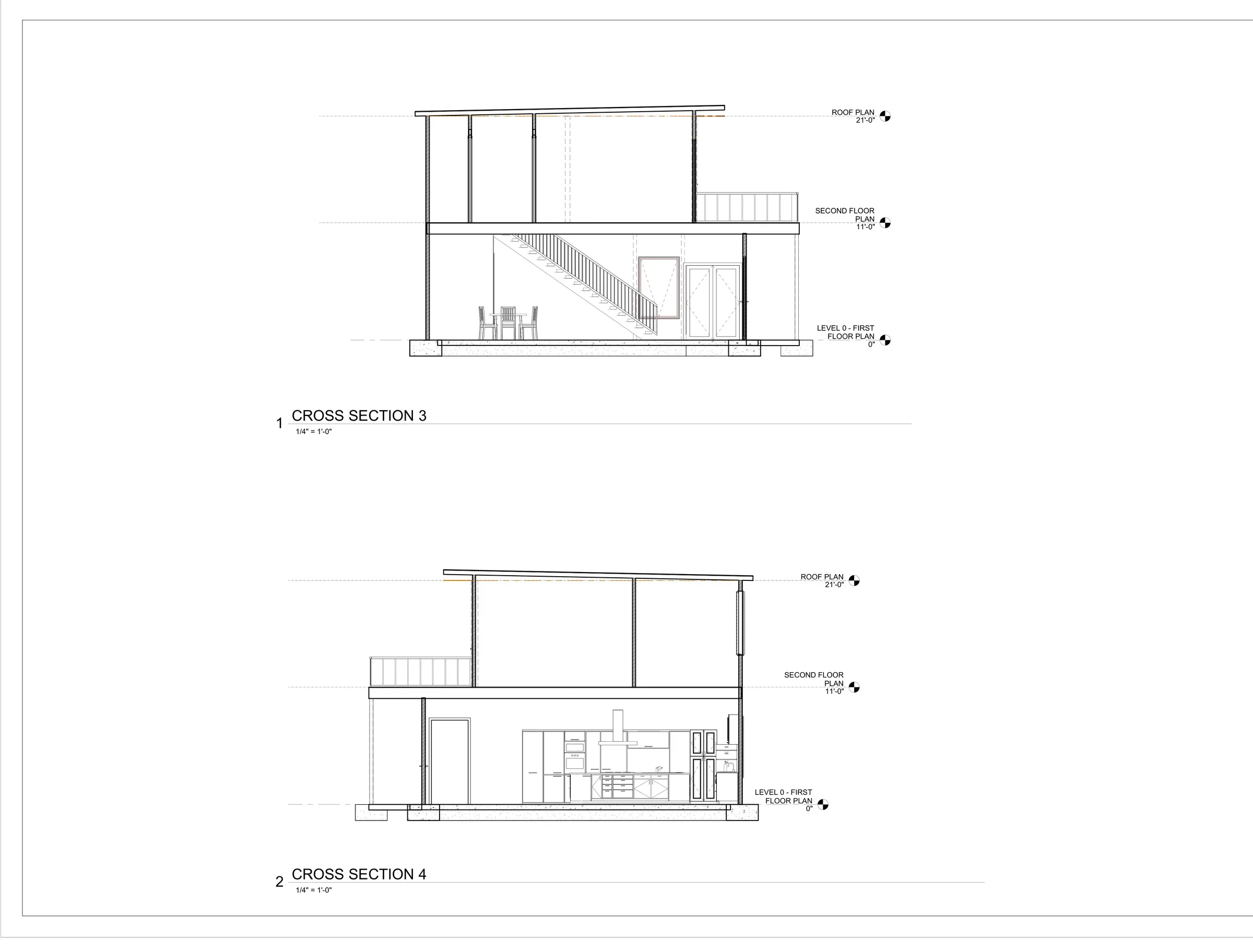

04 · Sections
2 sheets · click to zoom
05 · Structural
5 sheets · click to zoom
