The challenge
Every cabin had to be broken down into modules — each wall panel, bathroom pod and steel chassis detailed for factory fabrication and on-site assembly.
Residential & Community
Modular Tiny Home Village
Prefabricated tiny home clusters and a community center — modular cabin design, 3D fabrication drawings, structure, MEP layouts and an animated walkthrough.
- Architecture
- Structure
- MEP
- Visualisation
- Sector
- Residential & Community
- Year
- 2025
- Status
- Design complete
- Deliverables shown
- 25 drawings & views
Case study
Modular tiny homes, shared bathroom pods and a community center, designed for prefabrication.
A community of prefabricated tiny homes arranged in clusters around shared bathroom pods, together with a community center. The package covers modular planning, exploded fabrication views for every panel and chassis, foundations, MEP systems and a rendered walkthrough video.
What Axisys did
- Modular cabin and cluster planning

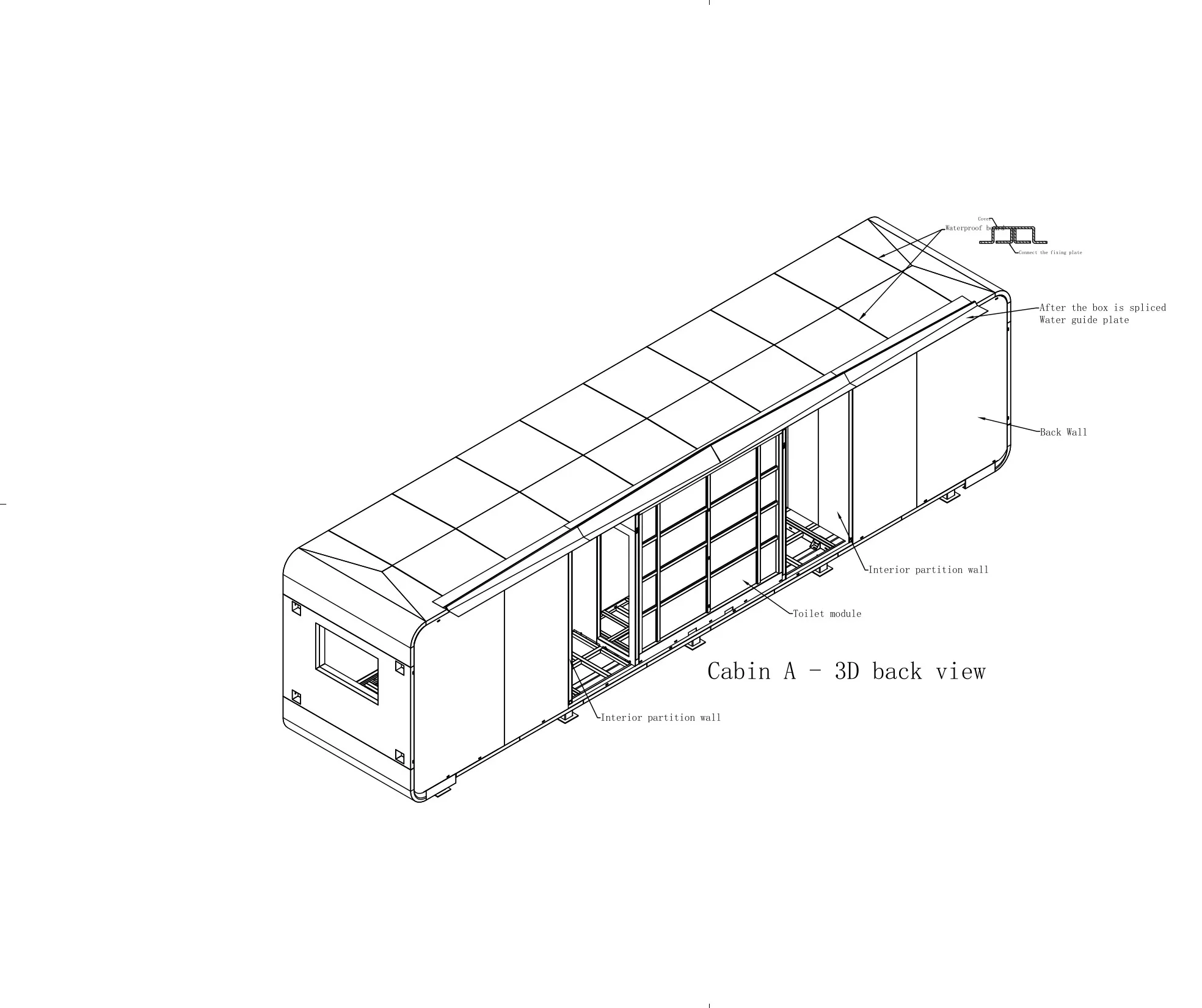

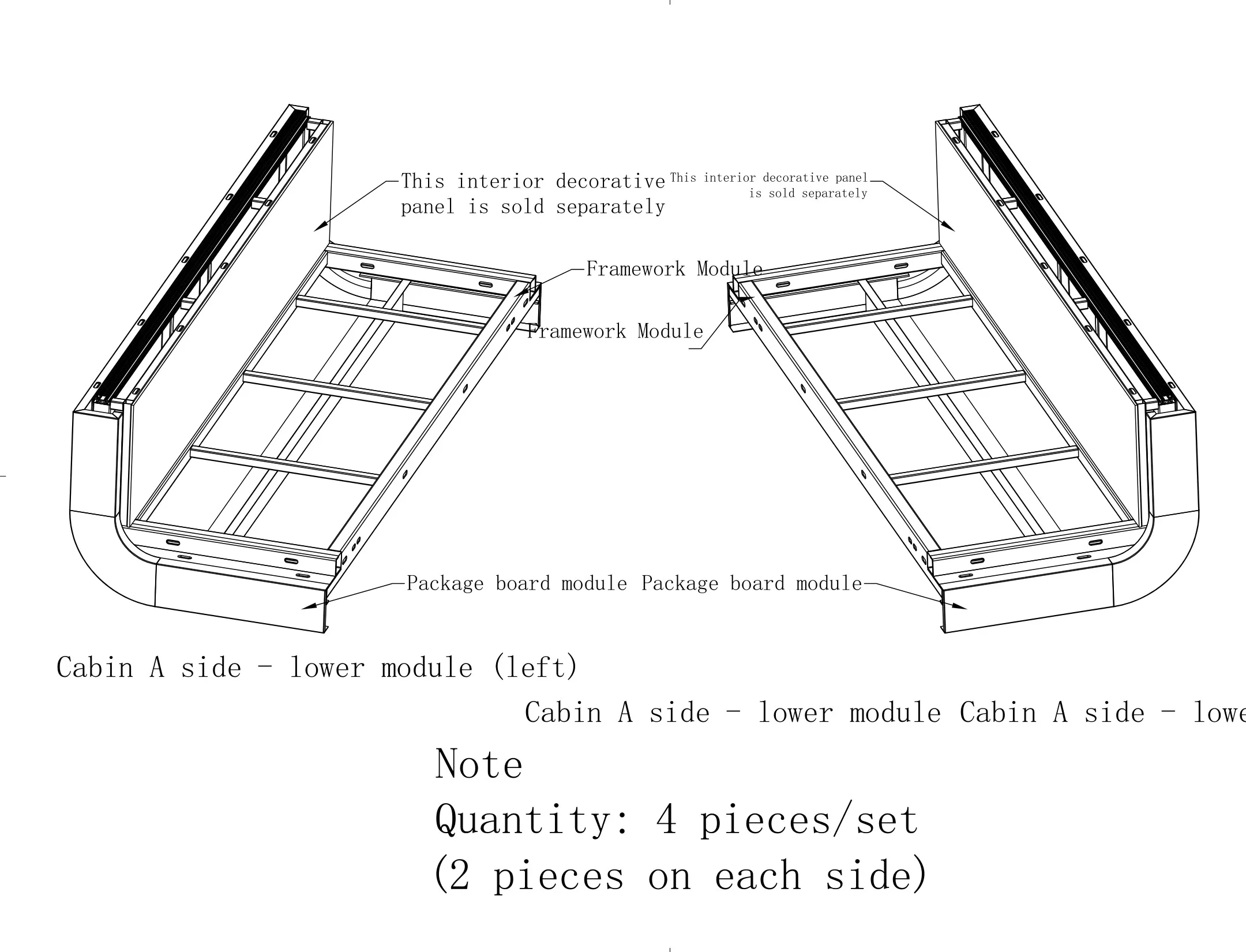

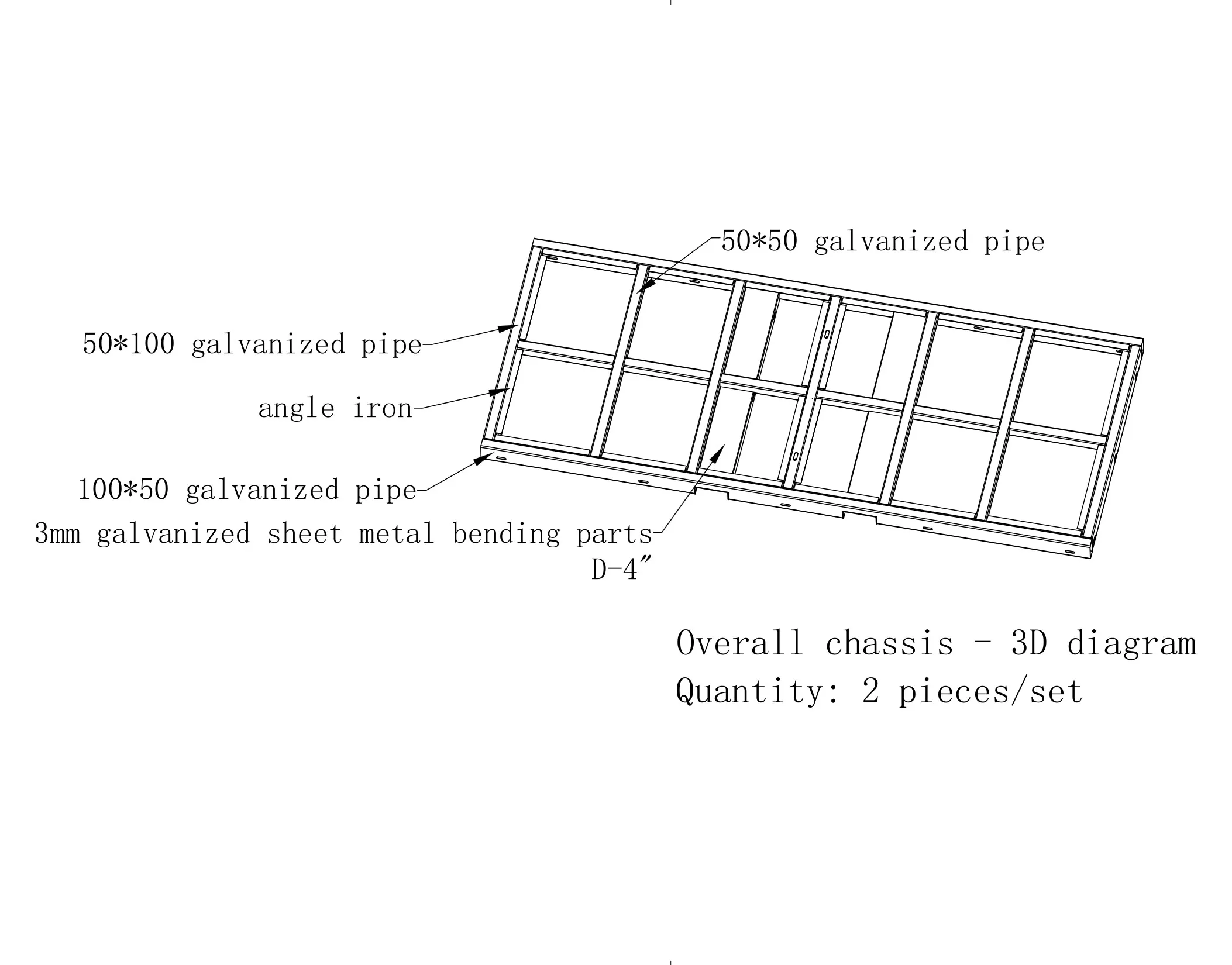

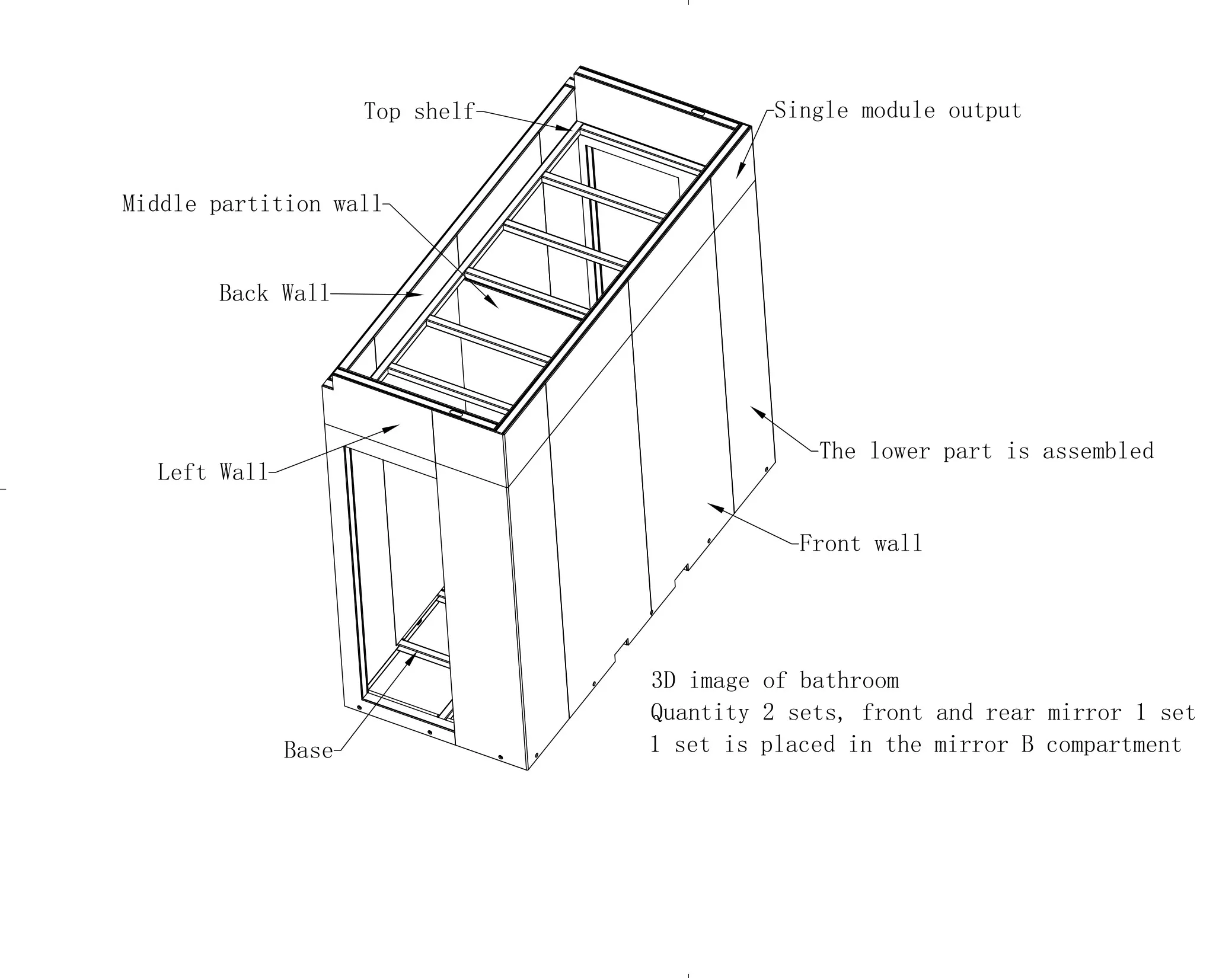

- Prefabrication and assembly 3D drawings
- Aluminium and galvanised steel frame detailing
- Lighting, power, water supply and drainage design
- Rendered walkthrough animation
Walkthrough
Rendered animation.

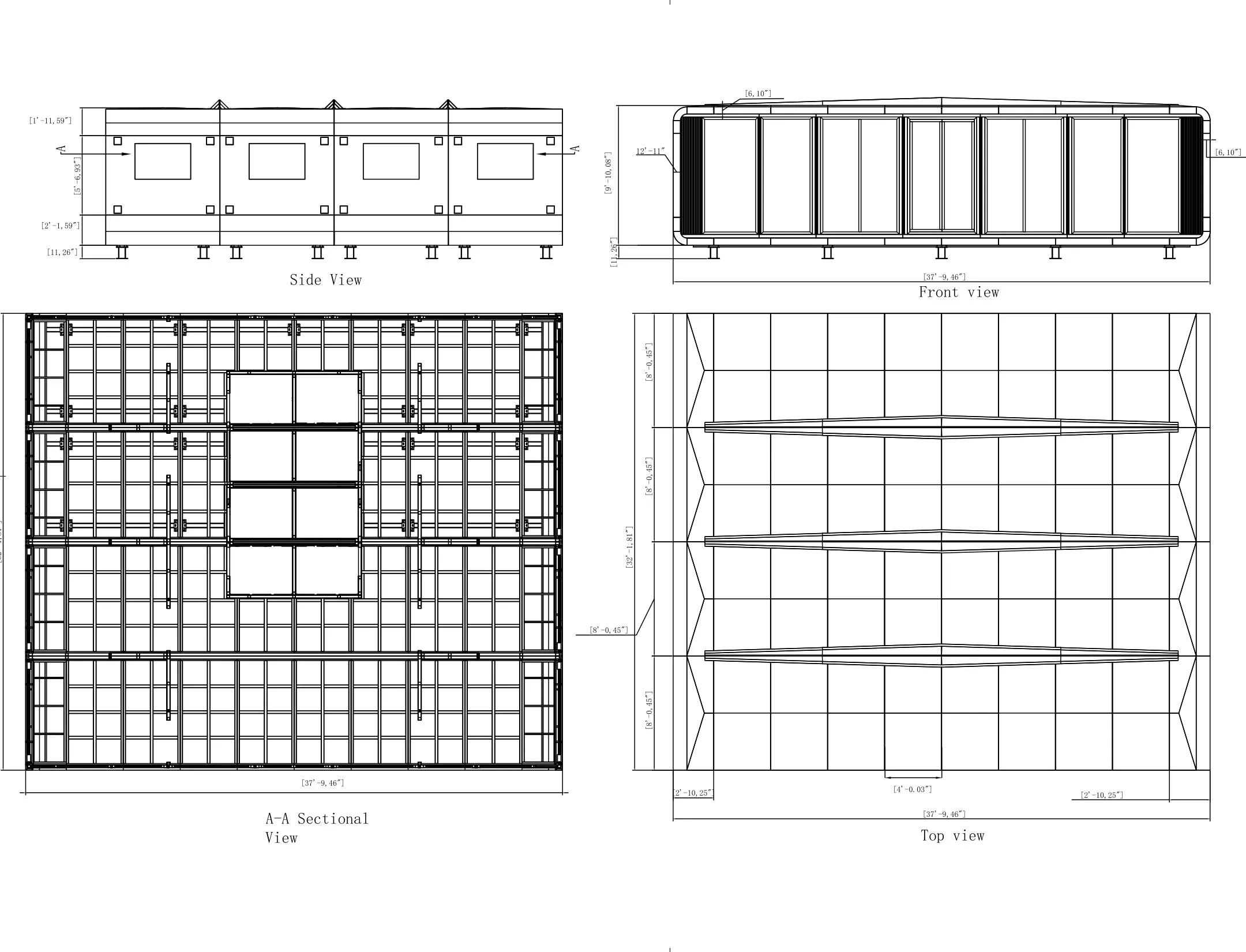

01 · 3D views & renderings
11 sheets · click to zoom

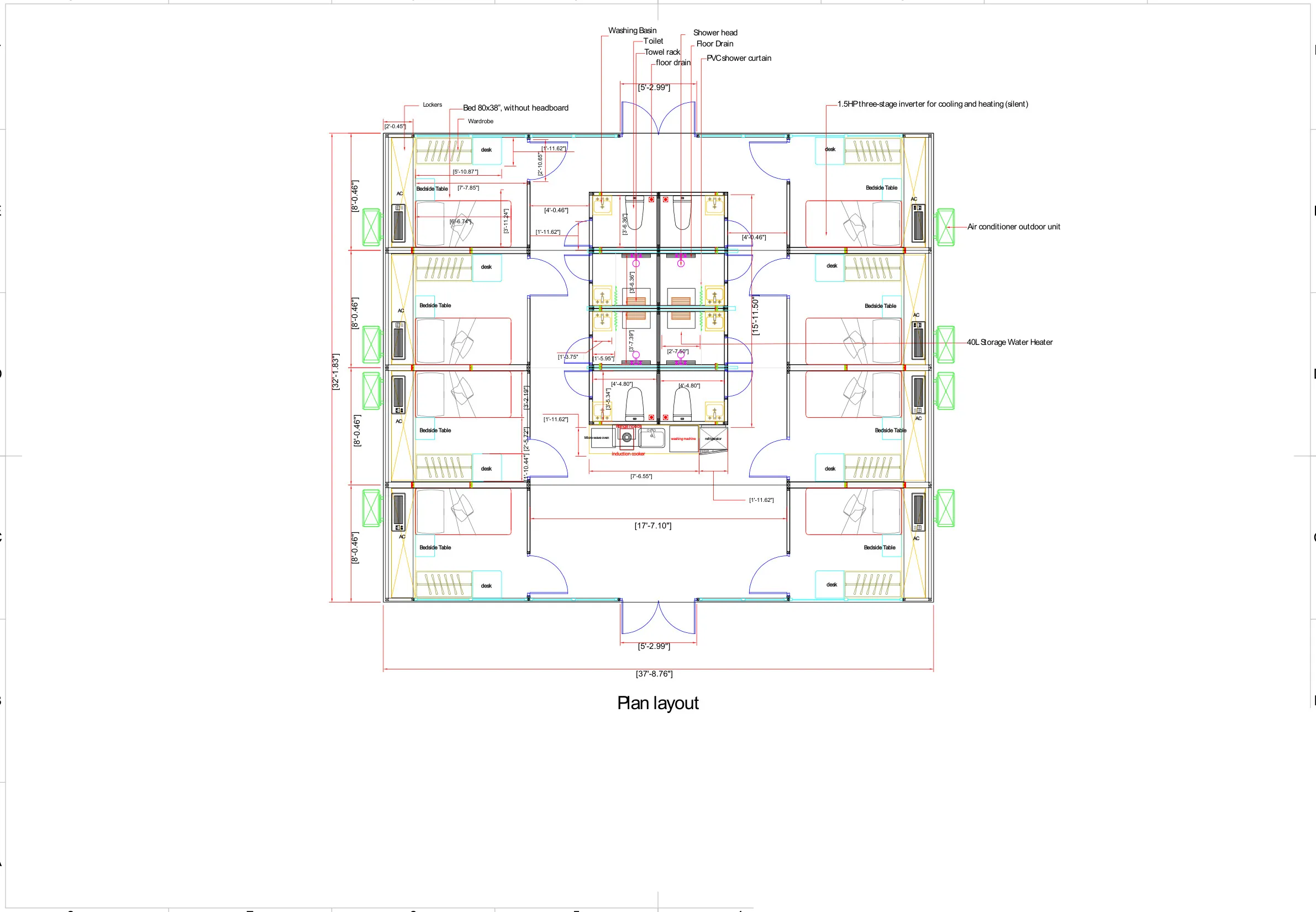

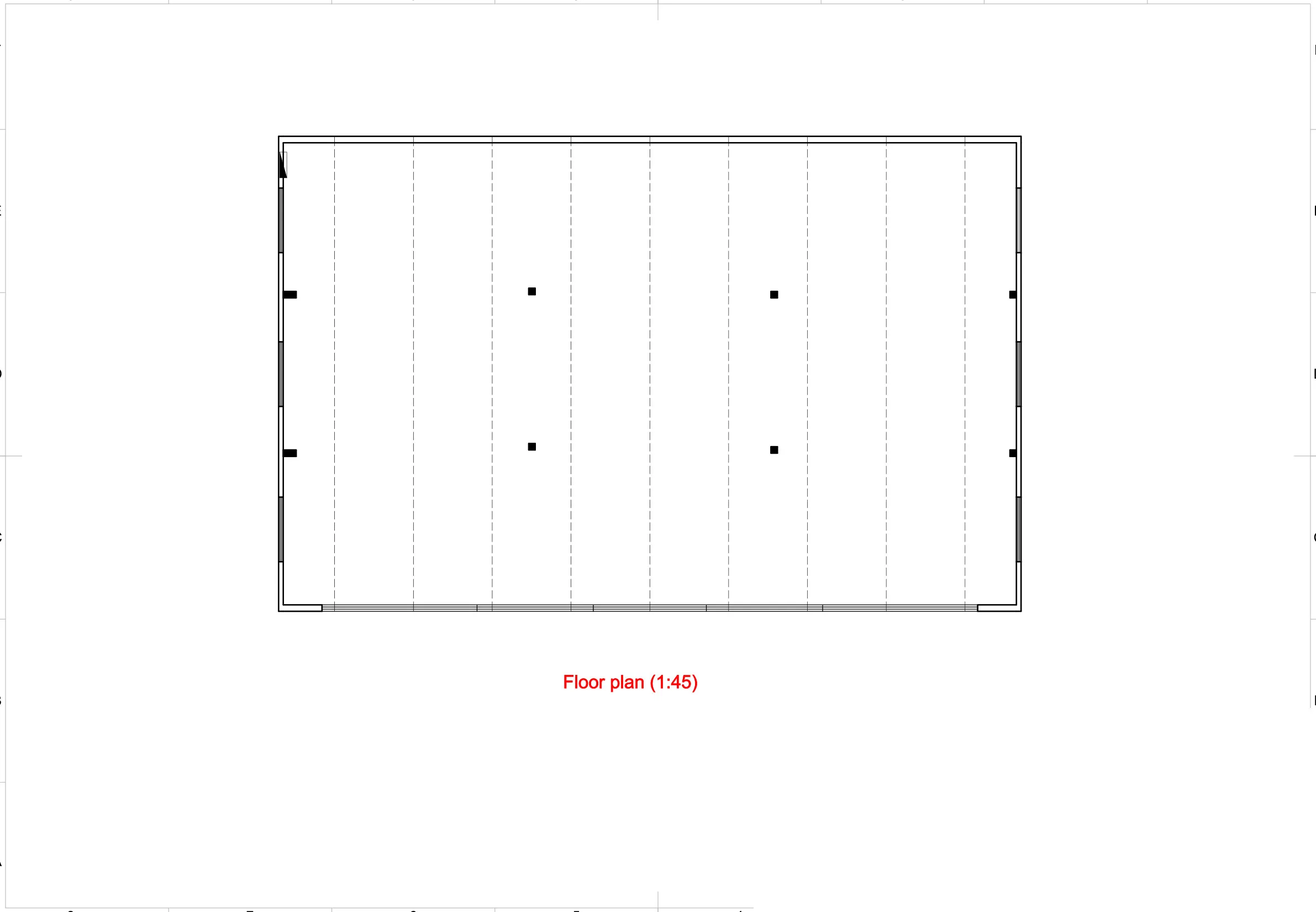

02 · Plans
3 sheets · click to zoom

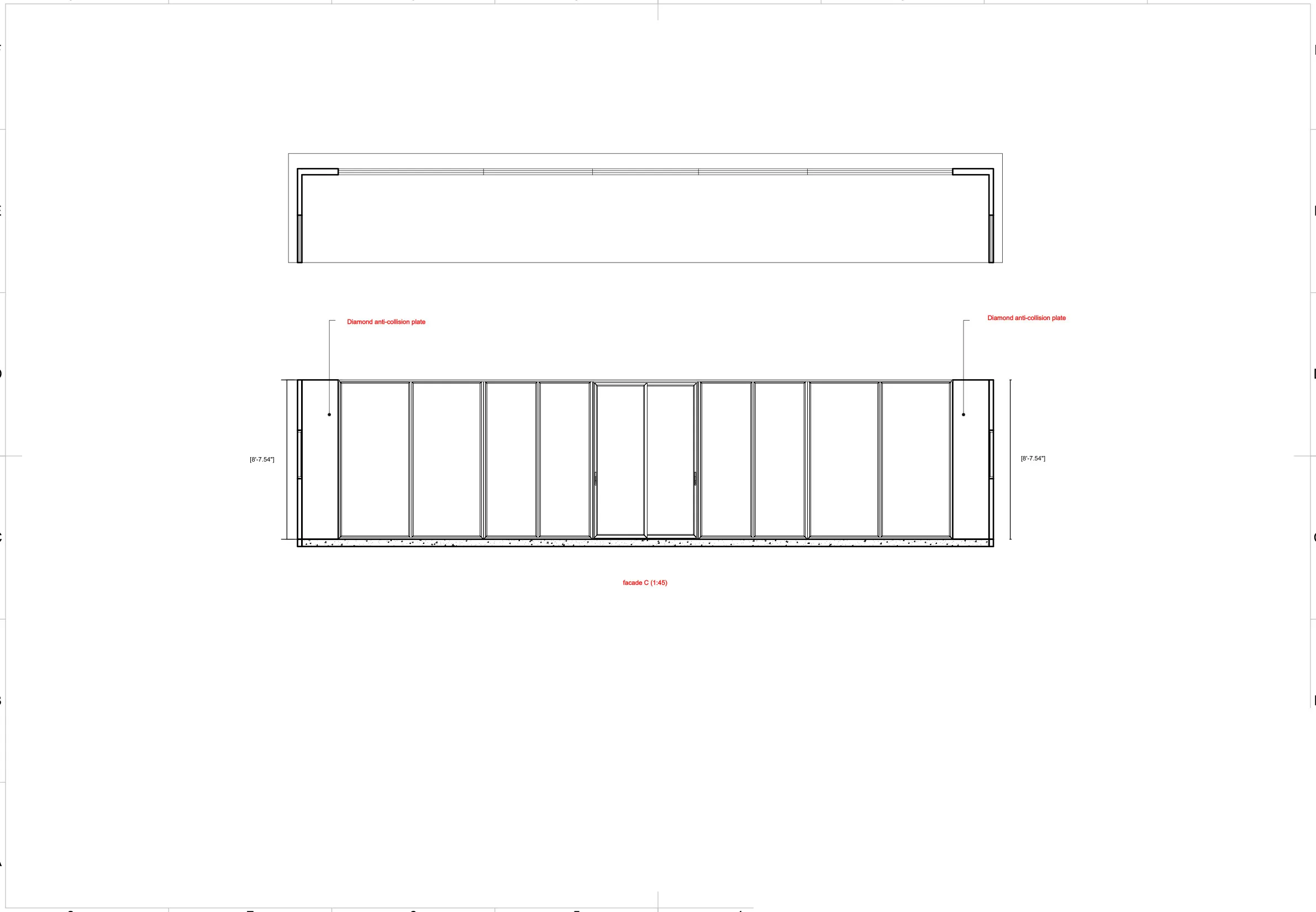

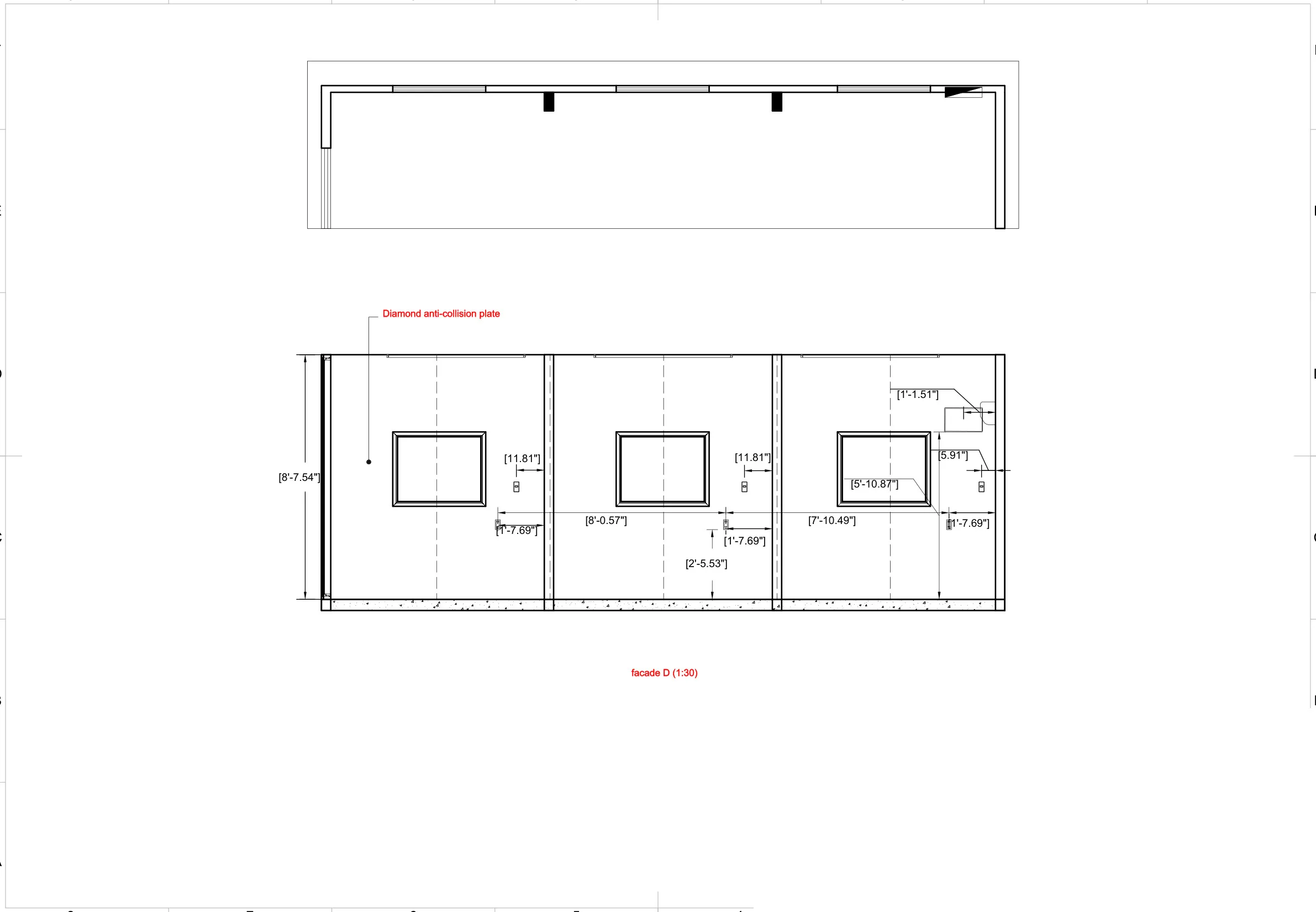

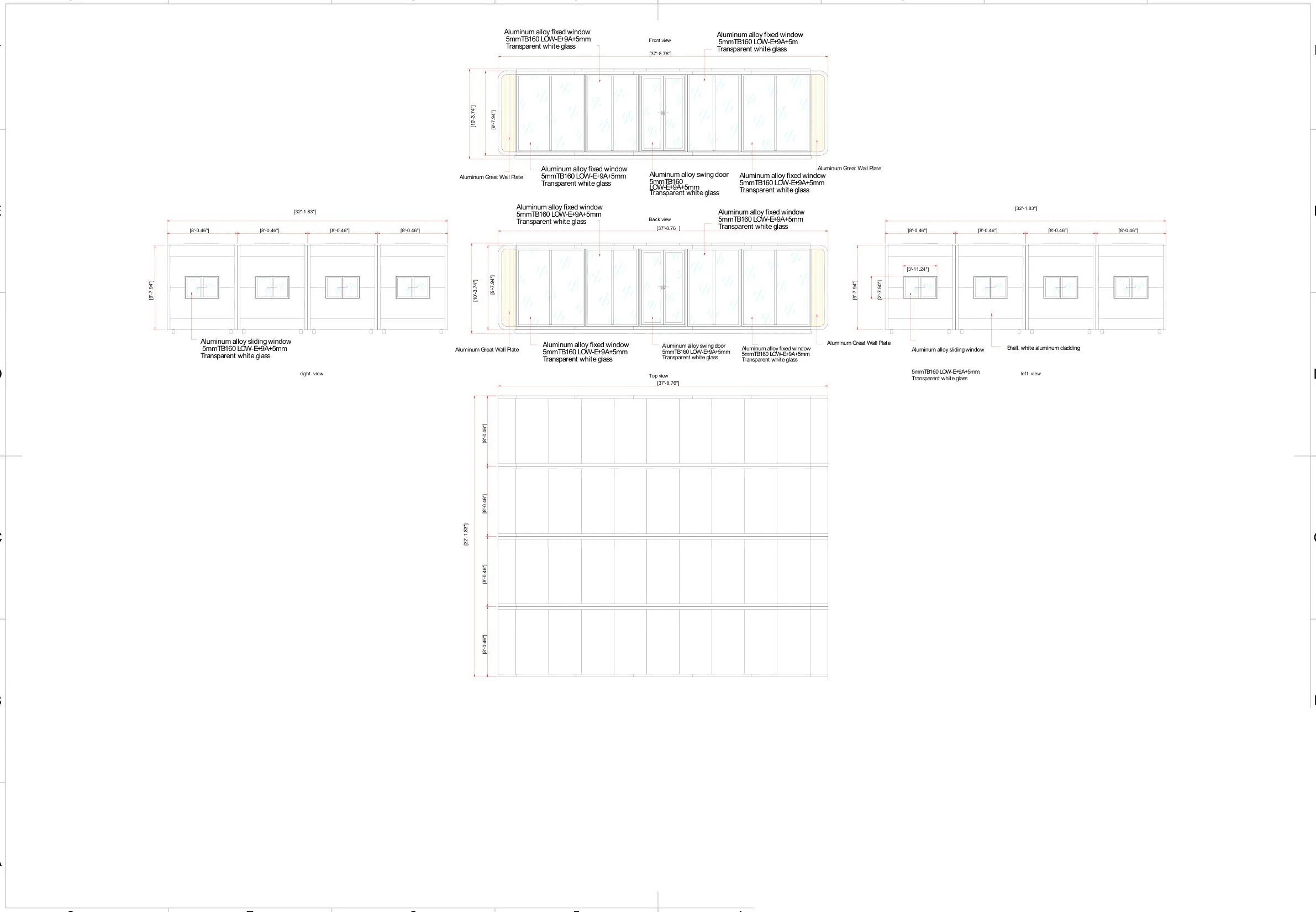

03 · Elevations
4 sheets · click to zoom

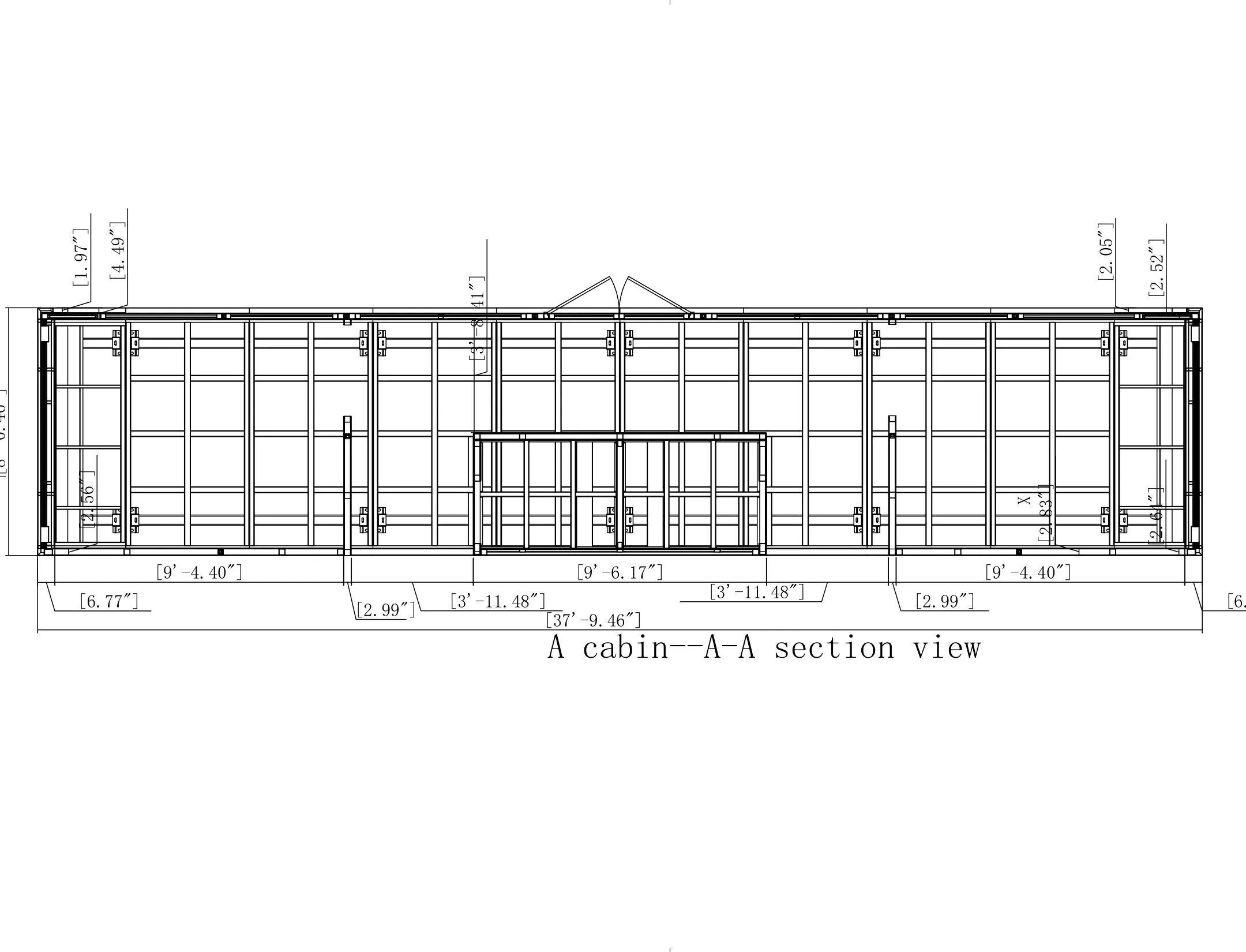

04 · Sections
1 sheet · click to zoom
05 · Structural
1 sheet · click to zoom
06 · MEP
5 sheets · click to zoom
