The challenge
Five buildings with very different uses — heavy maintenance shops, a paint and body shop, a train wash and a cleaning platform — had to work together as one coordinated campus.
Transportation & Infrastructure · Los Angeles, California, USA
Rail Maintenance & Storage Facility

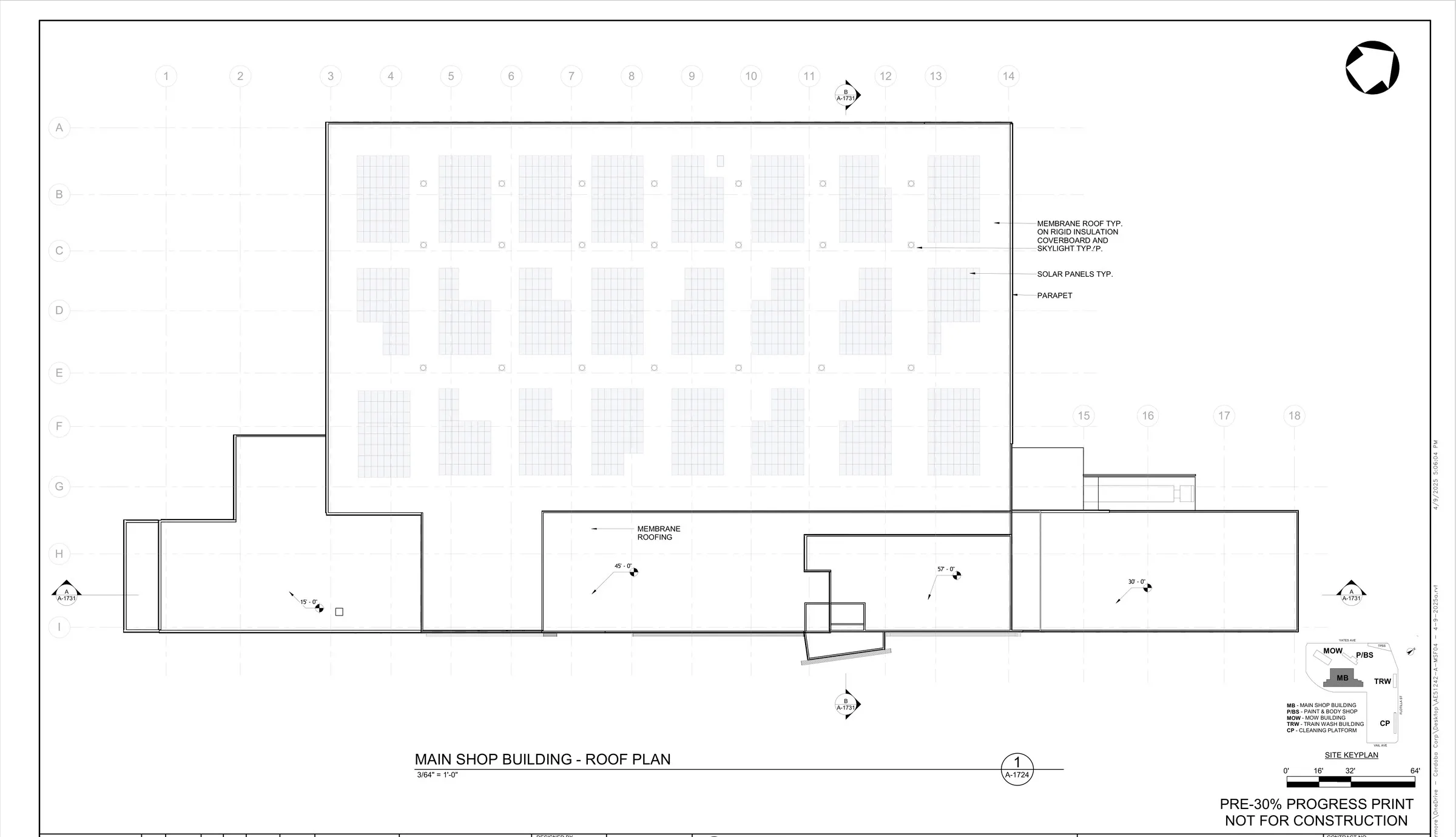

Architectural design drawings for a light-rail maintenance campus — main shop, maintenance-of-way building, paint & body shop, train wash and cleaning platform.
- Architecture
- Visualisation
- Sector
- Transportation & Infrastructure
- Location
- Los Angeles, California, USA
- Year
- 2025
- Status
- Design development
- Deliverables shown
- 13 drawings & views
Case study
Architectural design drawings for a multi-building light-rail maintenance and storage campus.
A multi-building transit maintenance campus including a three-storey main shop, maintenance-of-way building, paint and body shop, train wash and cleaning platform. The drawing package covers site planning, floor and roof plans, elevations, sections, egress and schedules across every building.
What Axisys did
- Multi-building site planning
- Floor, roof and reflected ceiling plans
- Building elevations and sections
- Egress planning and code analysis
- Door, window and finish schedules
Outcome
Pre-30% design progress set covering every building.
01 · 3D views & renderings
2 sheets · click to zoom

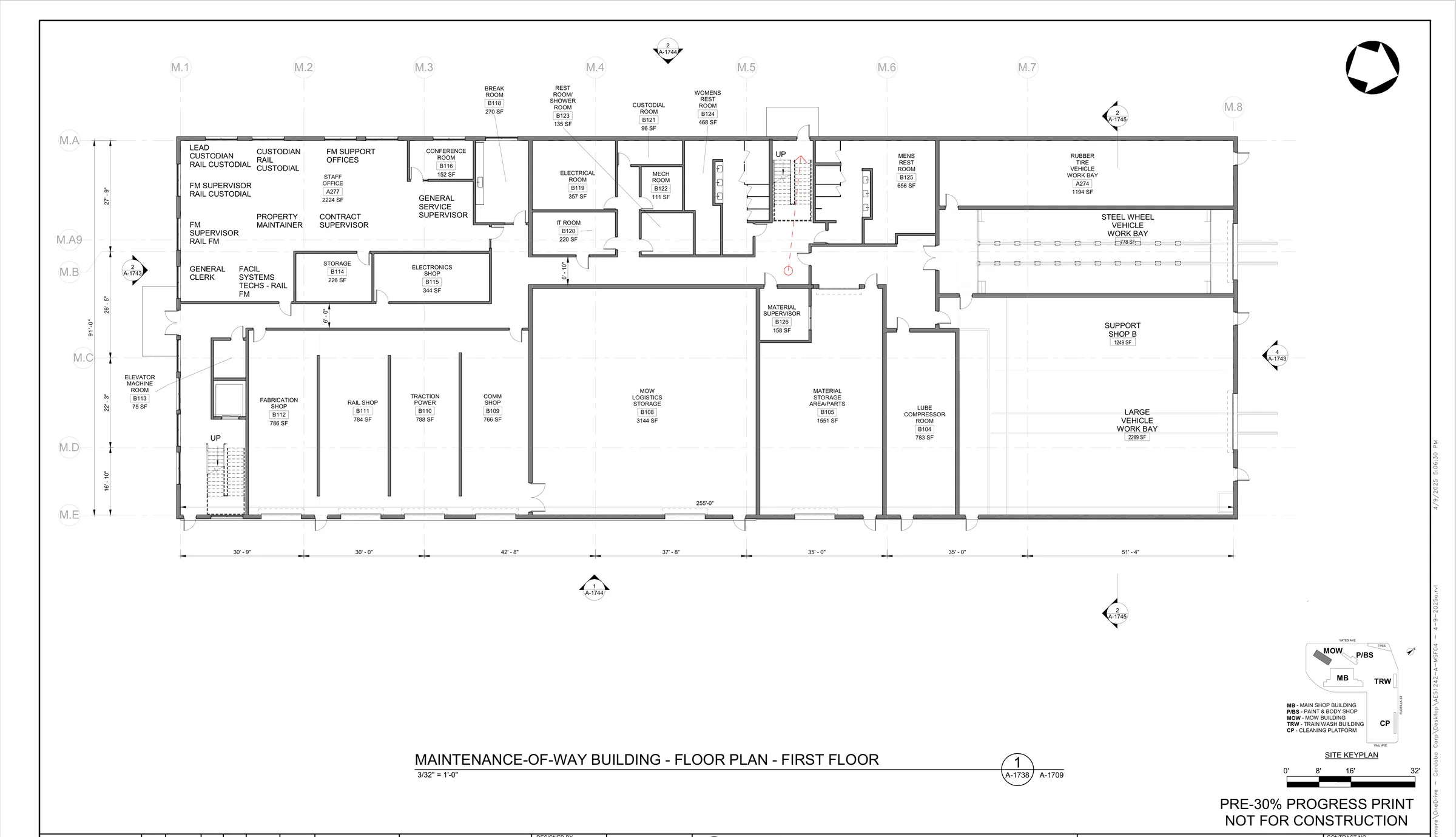

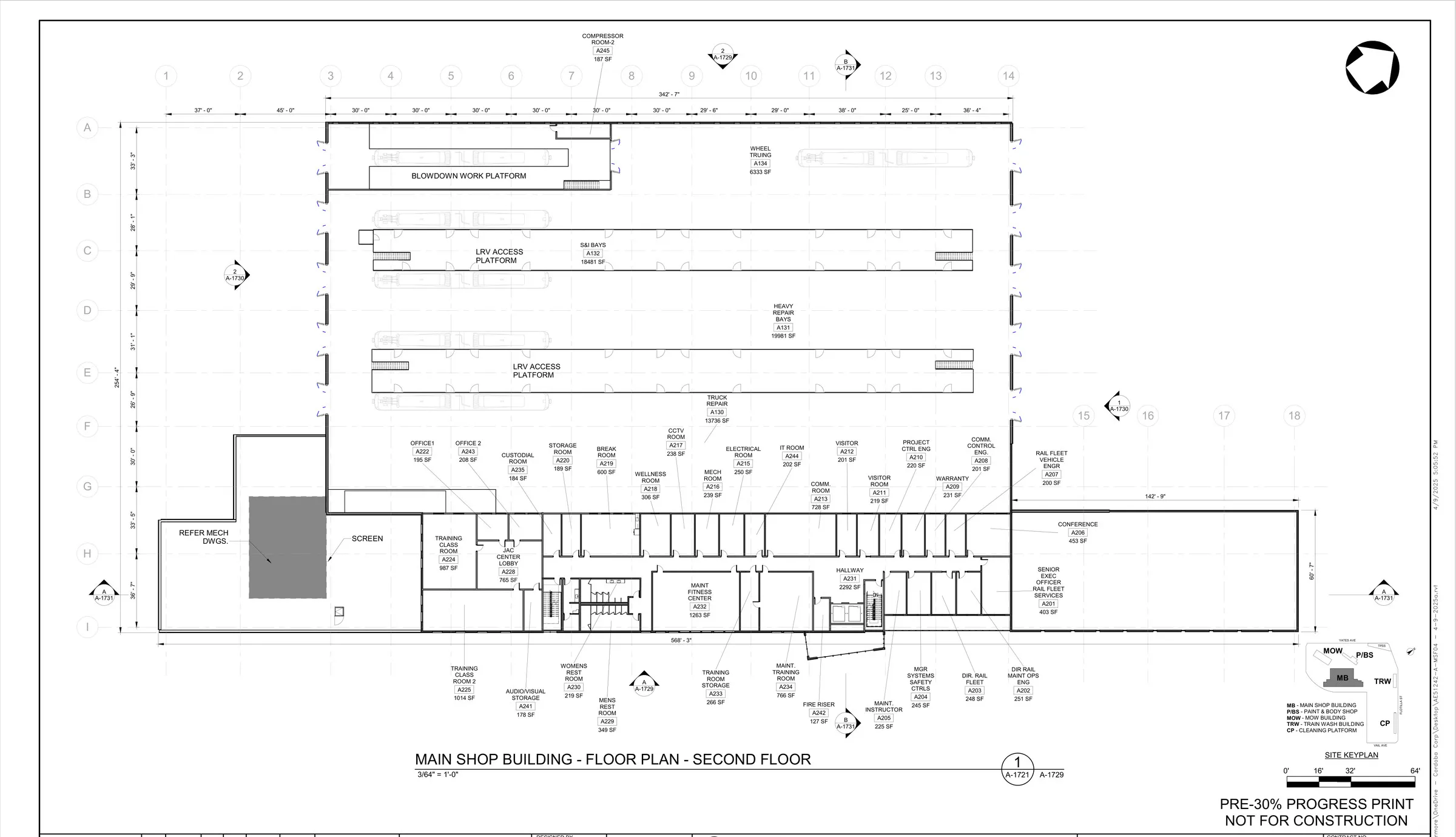

02 · Plans
5 sheets · click to zoom

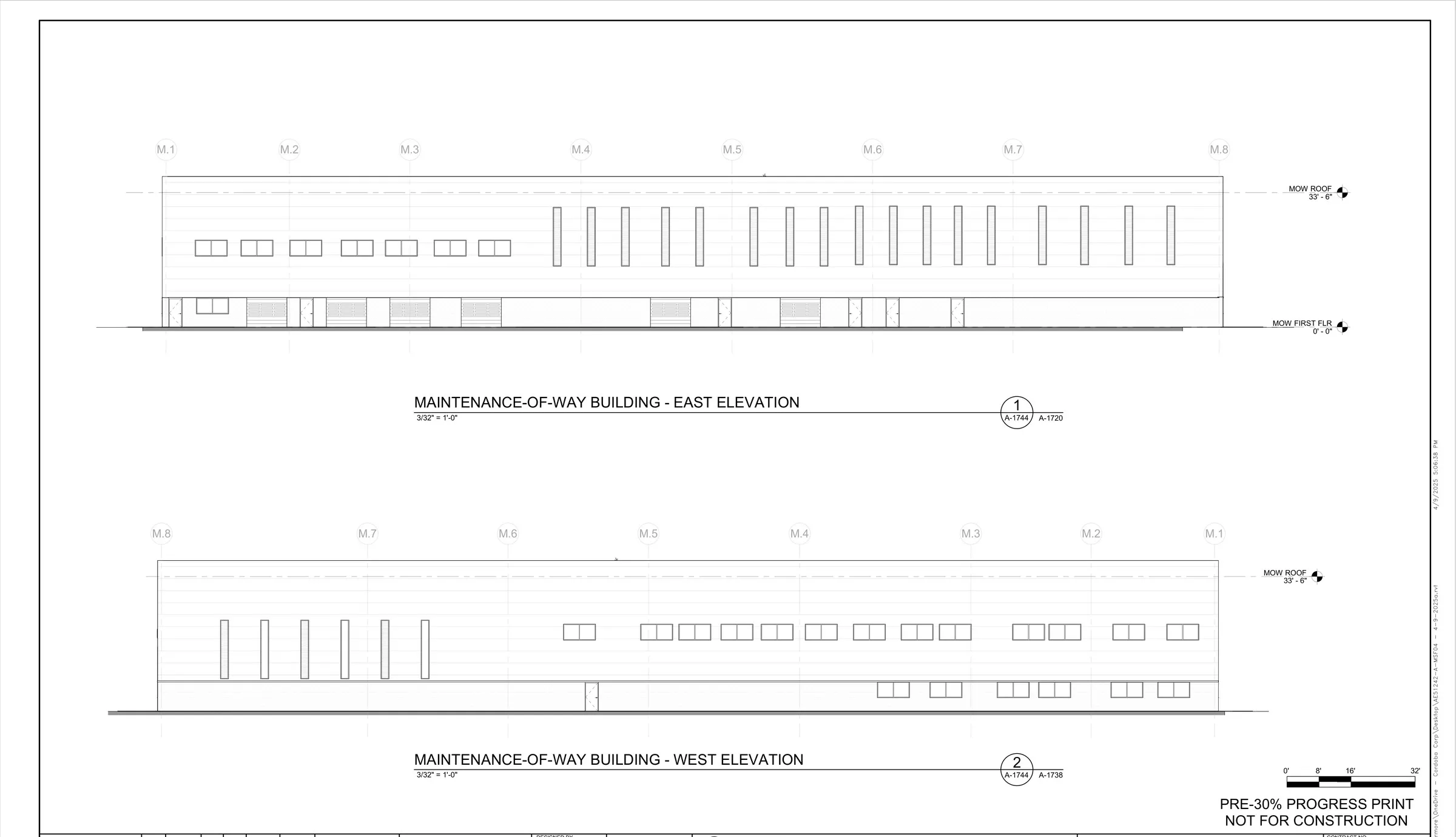

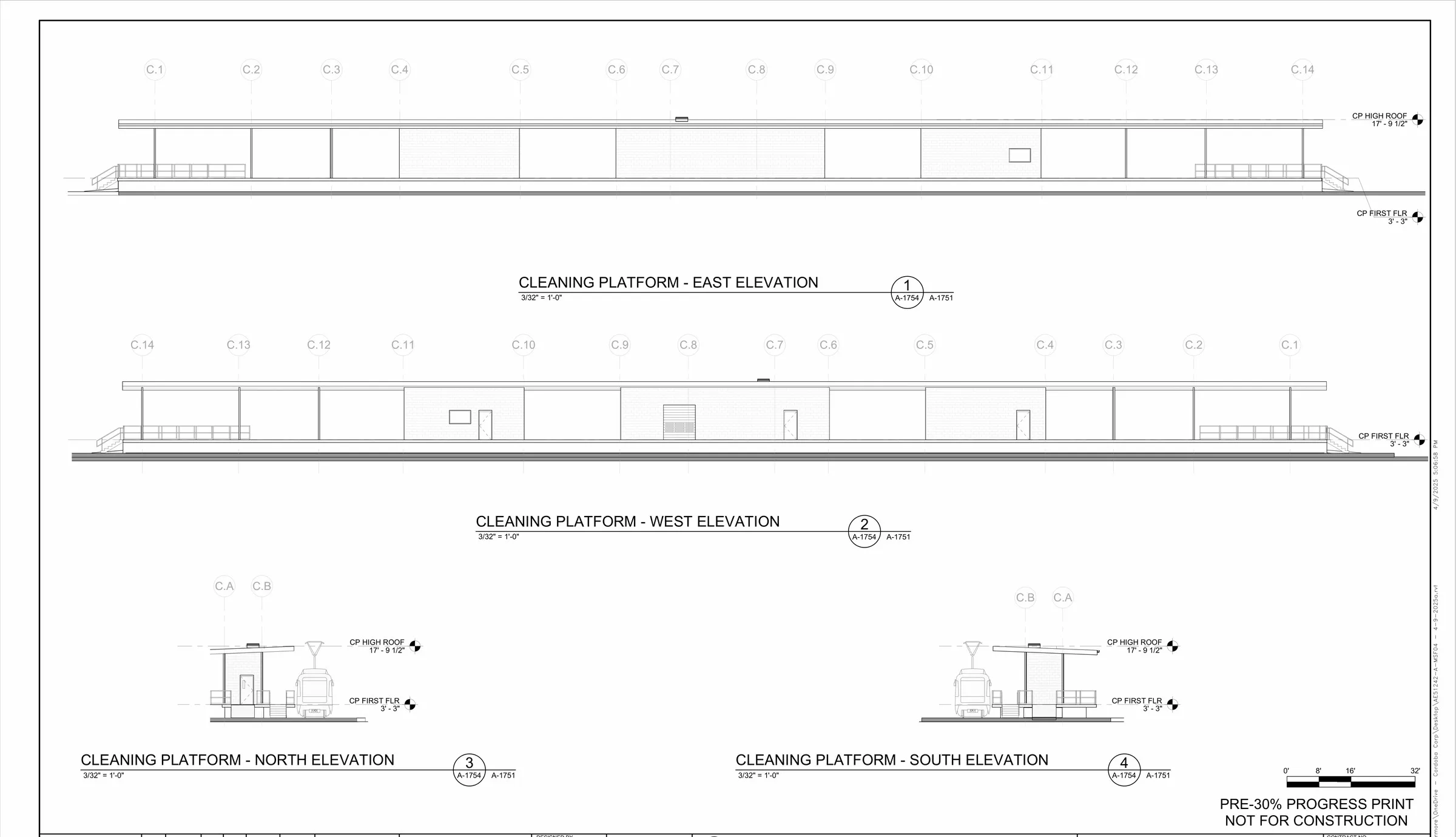

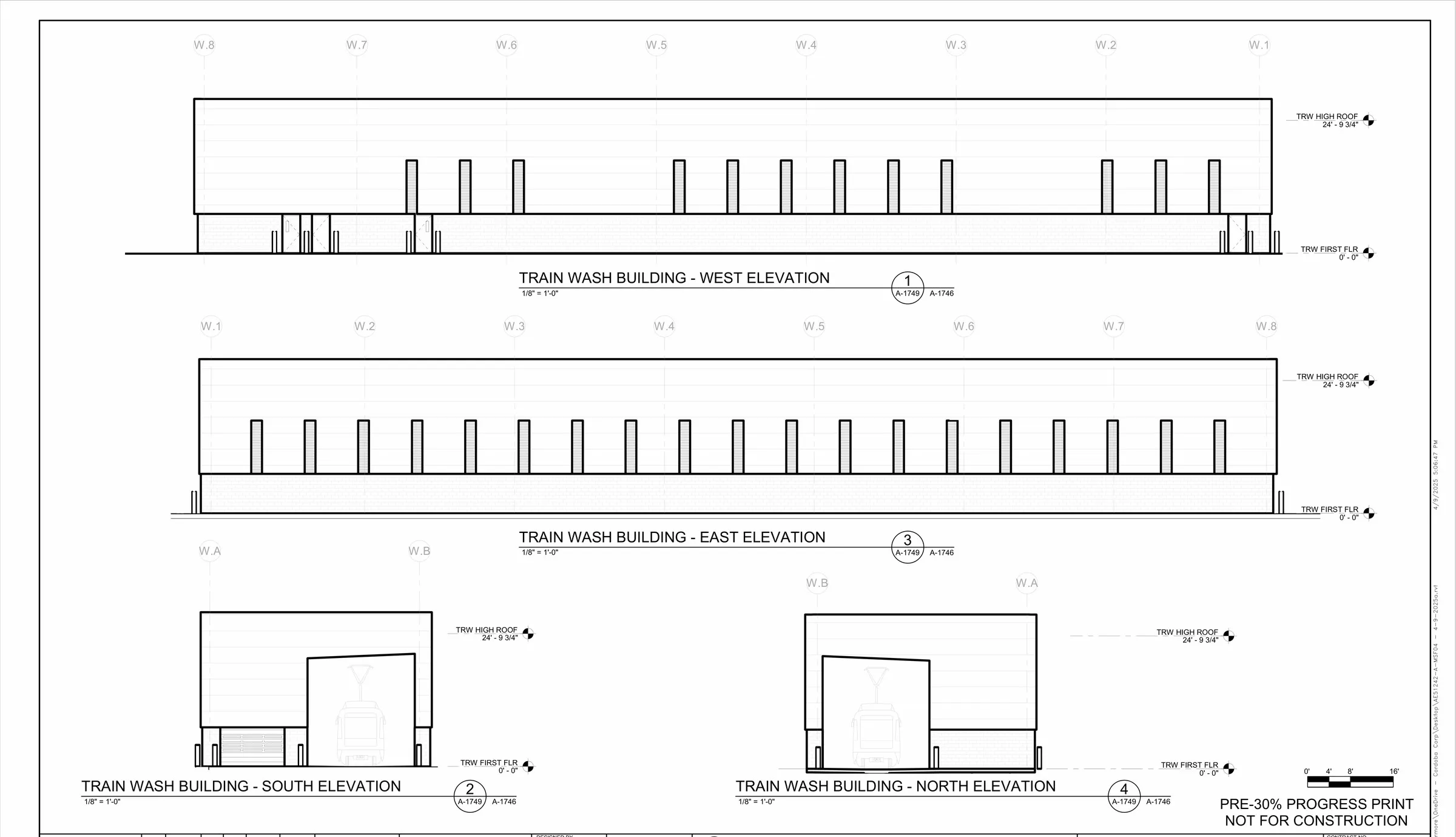

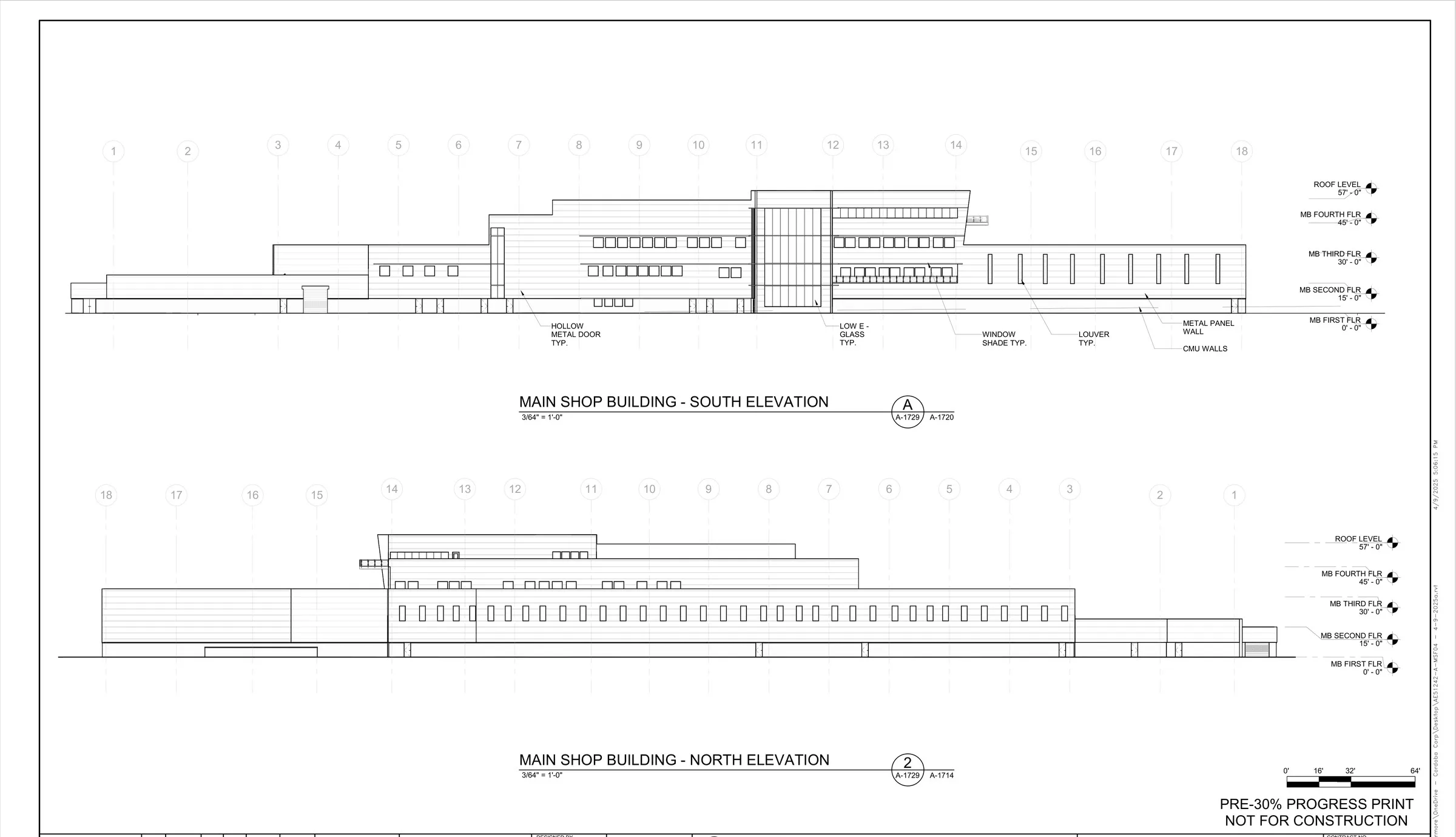

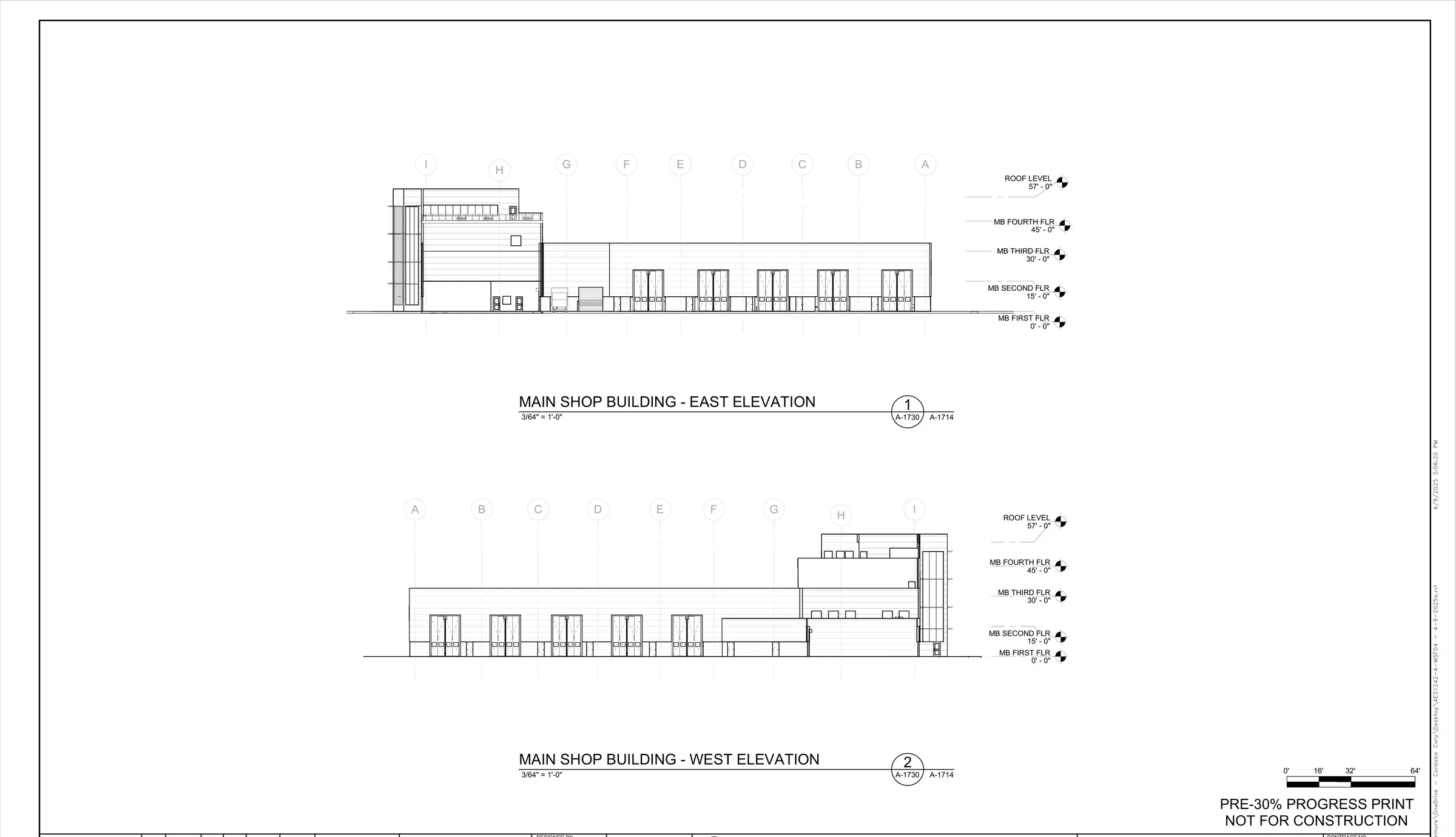

03 · Elevations
5 sheets · click to zoom

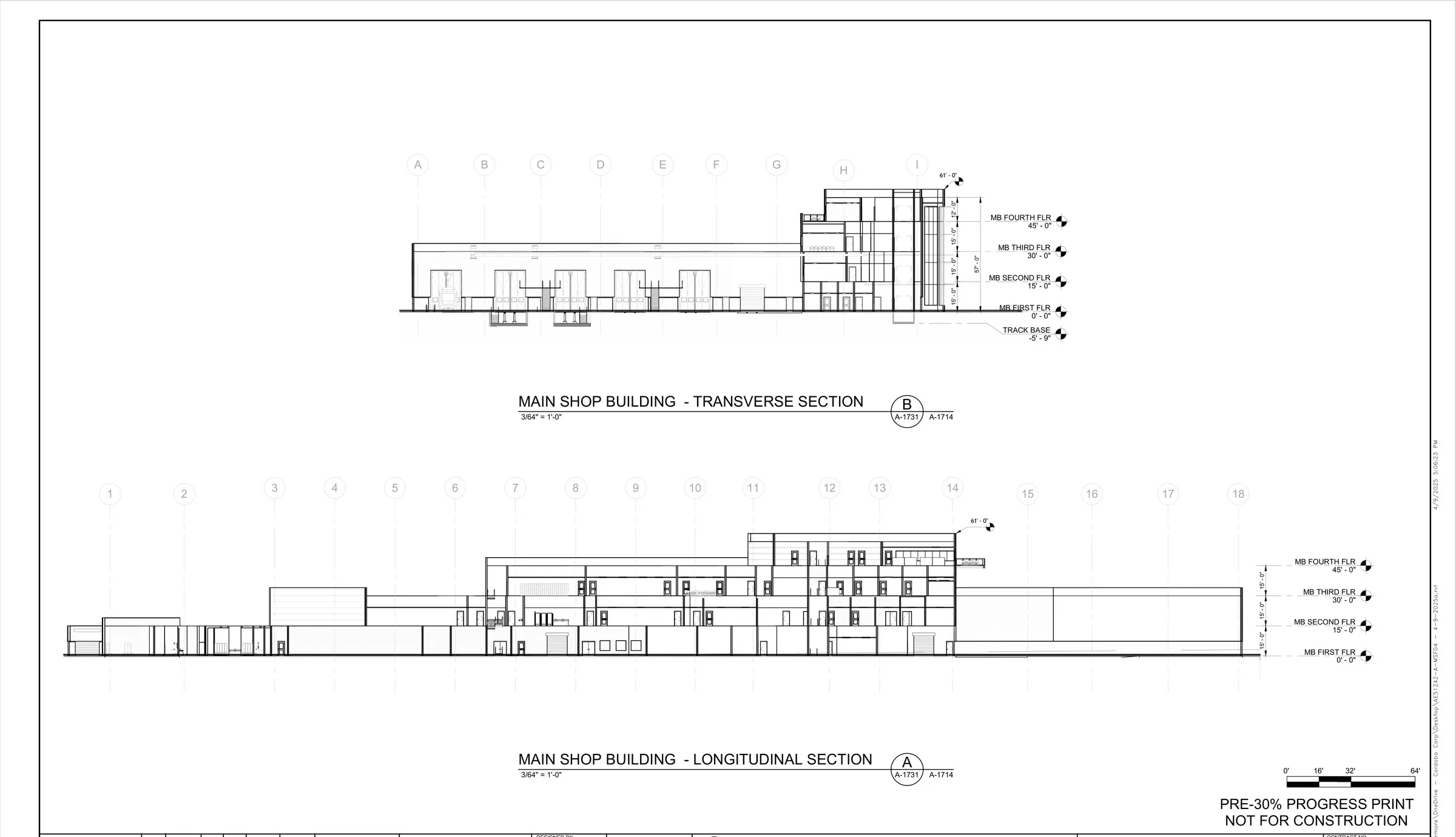

04 · Sections
1 sheet · click to zoom
