The challenge
Curved steel roof beams on slender columns, open on all sides to wind, snow and seismic loading.
Public & Recreation · Maryville, Illinois, USA
Curved Steel Park Pavilion
Structural analysis and design of an arched steel pavilion — 3D model, ASCE 7 wind, snow and seismic loads, member code checks, connections and foundations.
- Structure
- Sector
- Public & Recreation
- Location
- Maryville, Illinois, USA
- Year
- 2025
- Status
- Design for approval
- Deliverables shown
- 9 drawings & views
Case study
Structural analysis and design of a curved steel pavilion for a public park.
A public park pavilion with curved steel roof beams on HSS columns. Axisys carried out the full structural analysis and design — loads, member and connection checks, the adjoining utility room and foundations — documented in a detailed calculation report.
What Axisys did

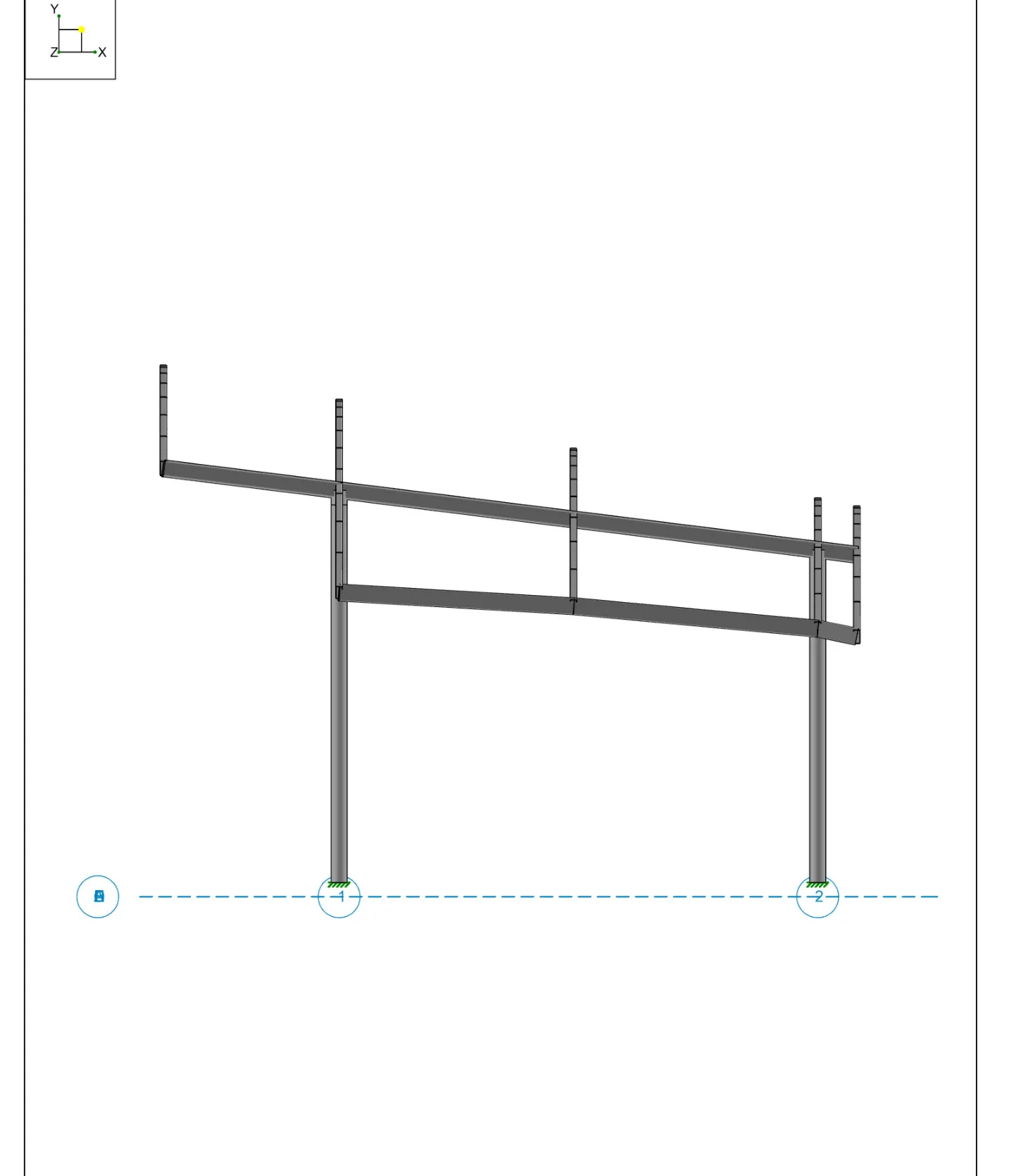

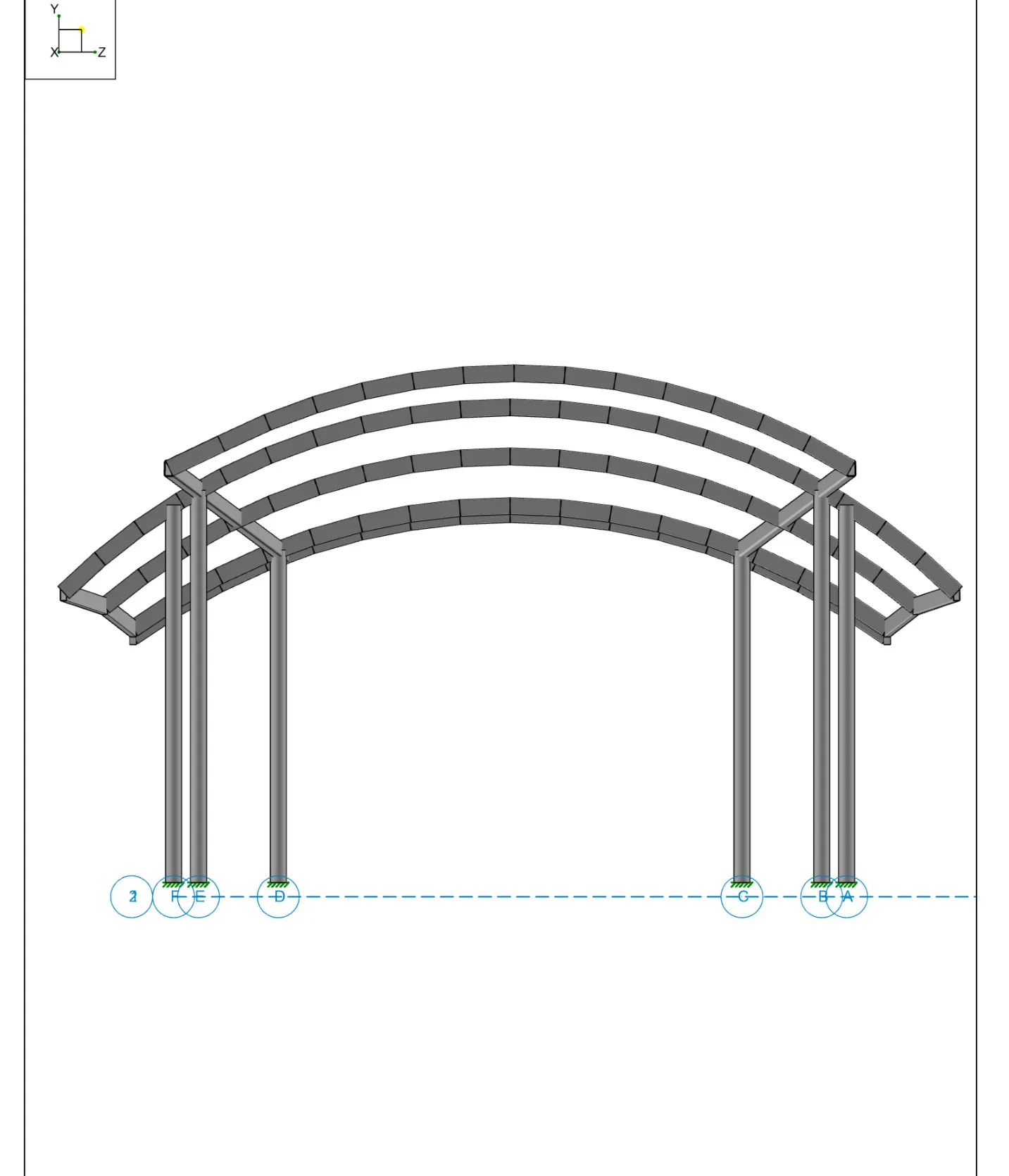

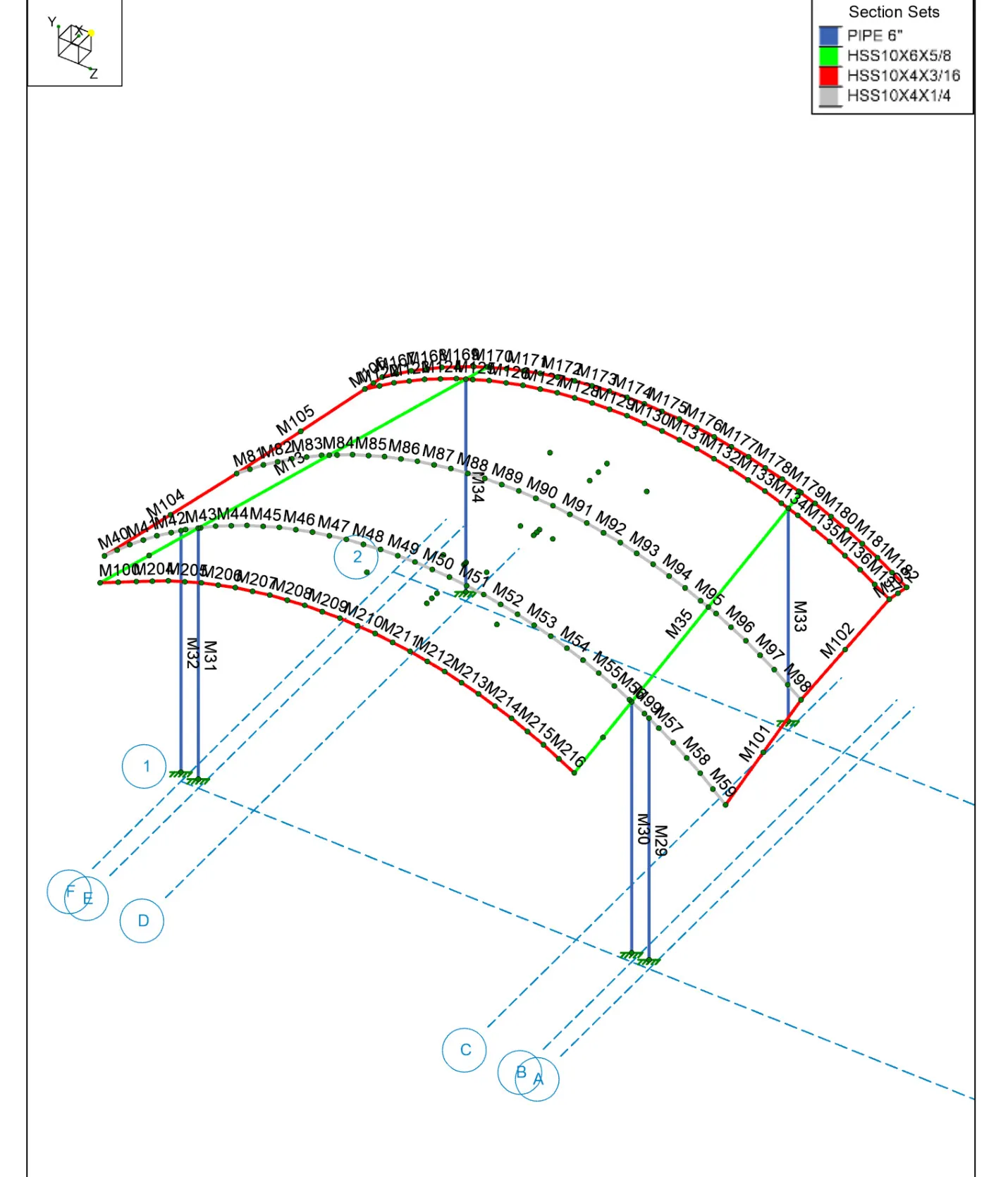

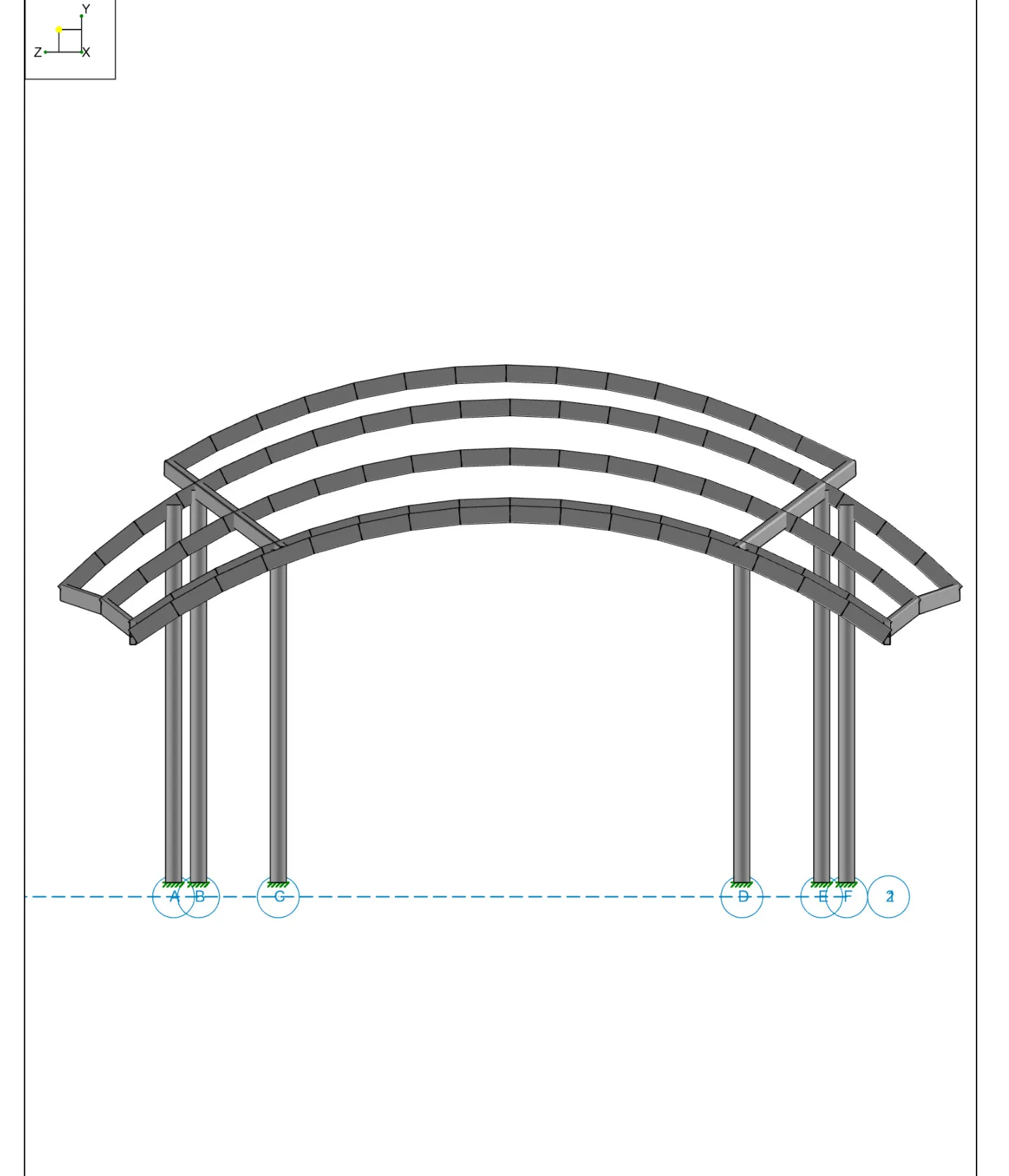

- 3D analysis model of curved HSS steel frame
- ASCE 7-16 wind, snow and seismic loading

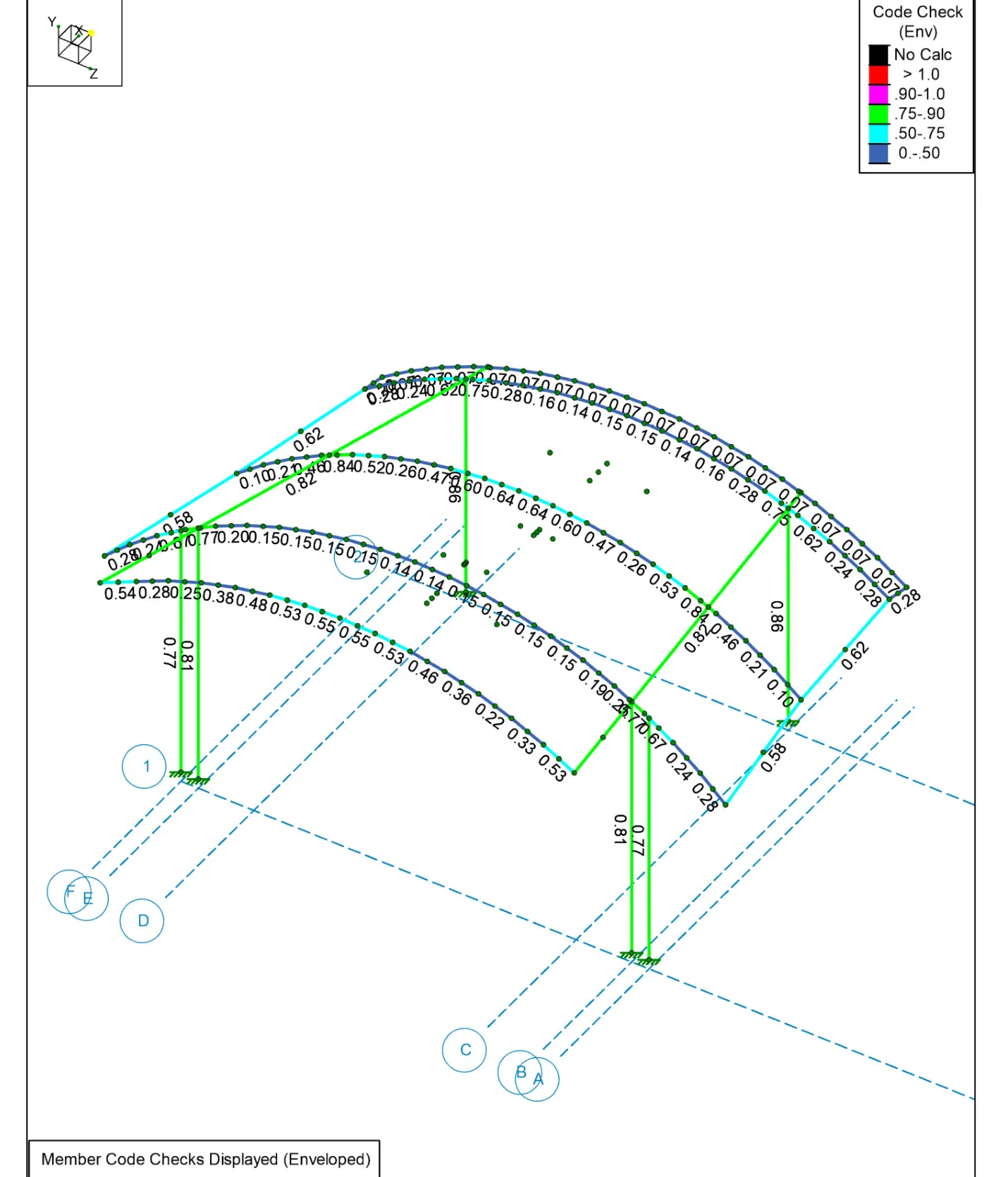

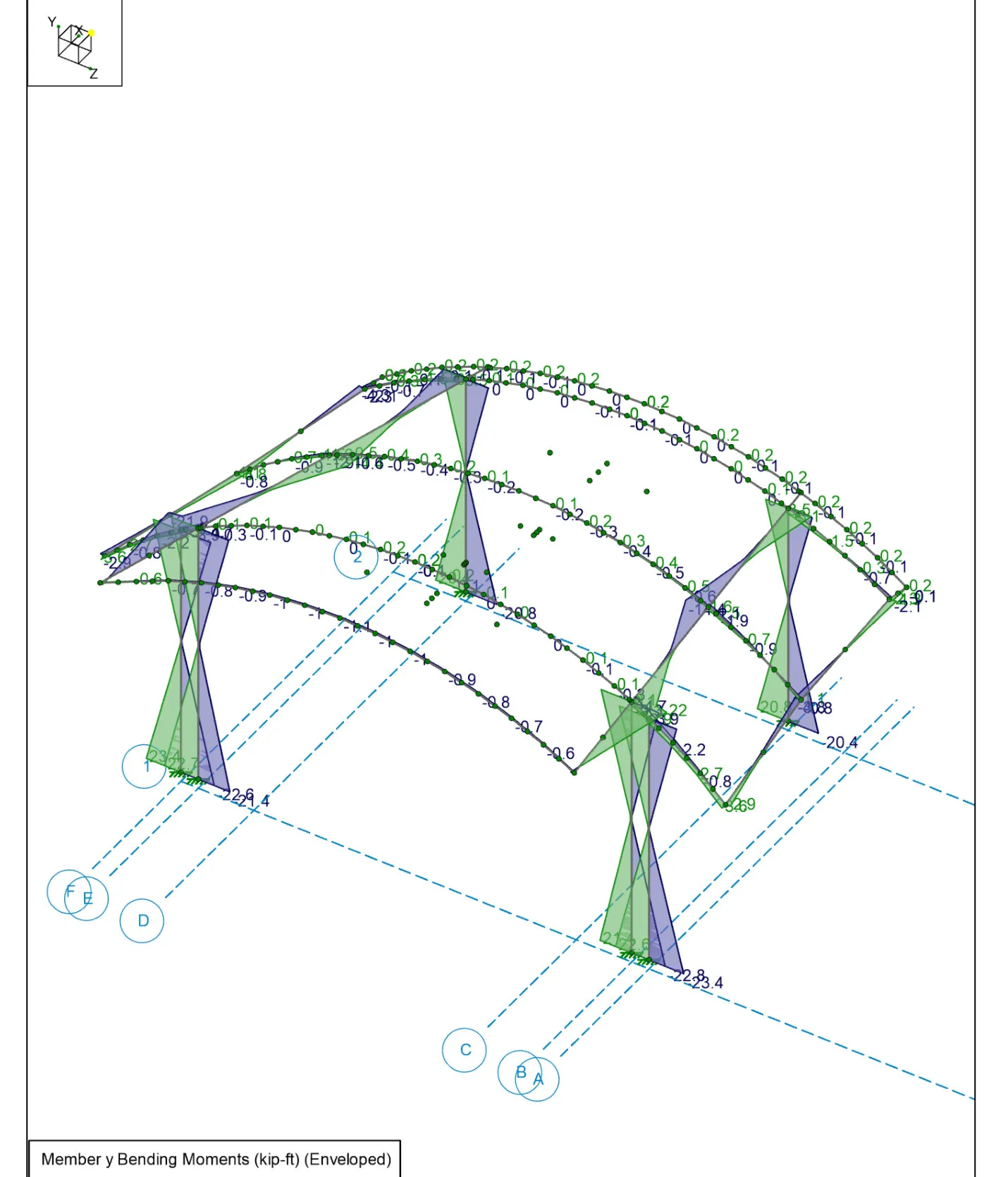

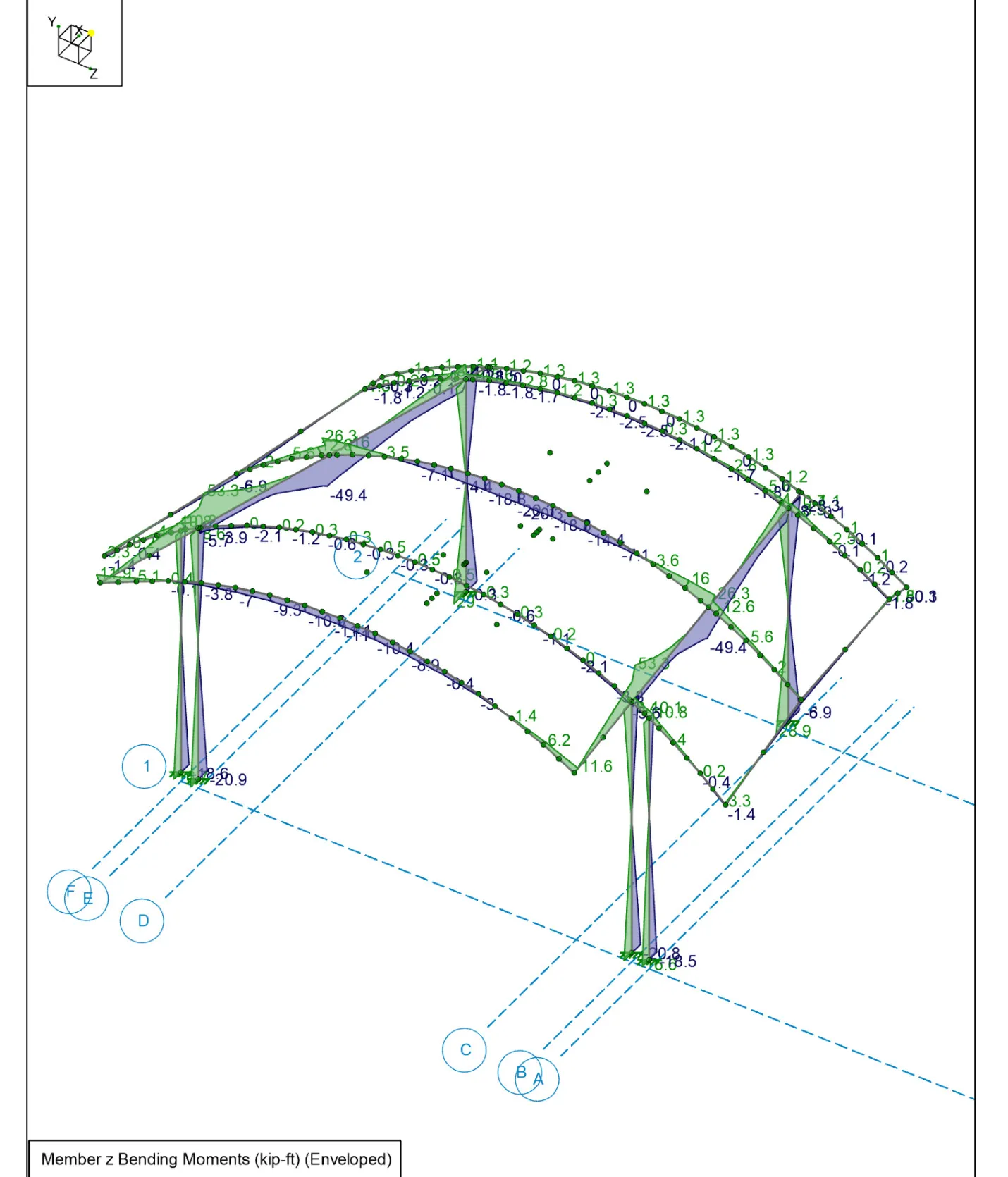

- Member code checks and deflection
- Connection and base plate design
- CMU utility room and foundation design
- 504-page structural calculation report
Outcome
504-page structural calculation report issued for approval.
